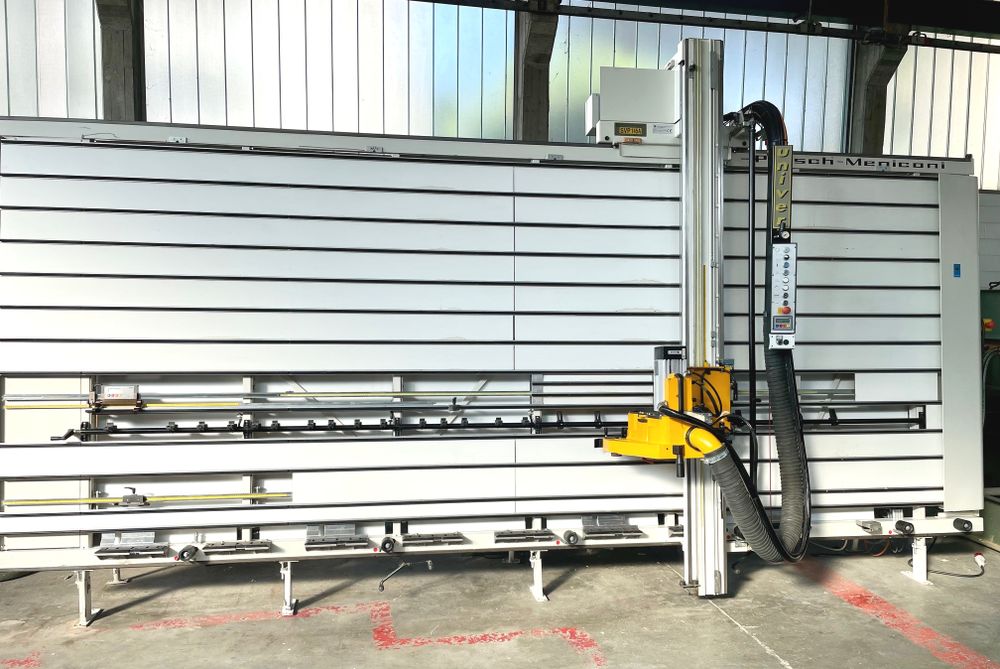

Putsch Meniconi SVP 145A

Semi-automatic vertical panel saw used
automatic movement in vertical and horizontal cuts
electronic display of horizontal cutting height
electronic horizontal measuring display
automatic electropneumatic mobile frame
no. 4 mechanical positioners for horizontal cuts
no. 2 low level stop for vertical cuts
possibility to move the vertical cuts in 5 positions

Technical data:
max panel dimensions mm. 4200 x 2200 x thickness 60
max horizontal length of cut mm. 4200
max height of horizontal cut mm. 2080
max height of vertical cut mm. 2200
max depth of cut mm. 60
blade motor power HP 6
feeding speed by inverter
blade diameter mm. 250

Polyzene base with supports and retractable rollers
intermediate support narrow pieces
machine configurations : automatic / semi-automatic / manual – from 2000 to 6000 rpm
overall sizes : mm. 5580 x 1500 x H. 3100
