Quadro 16L x 20D, SPV HAS030, KTS 2400 / 2600 Screen Chilsonator / Fitzpatrick Milling System & GTM Vibratory Screen

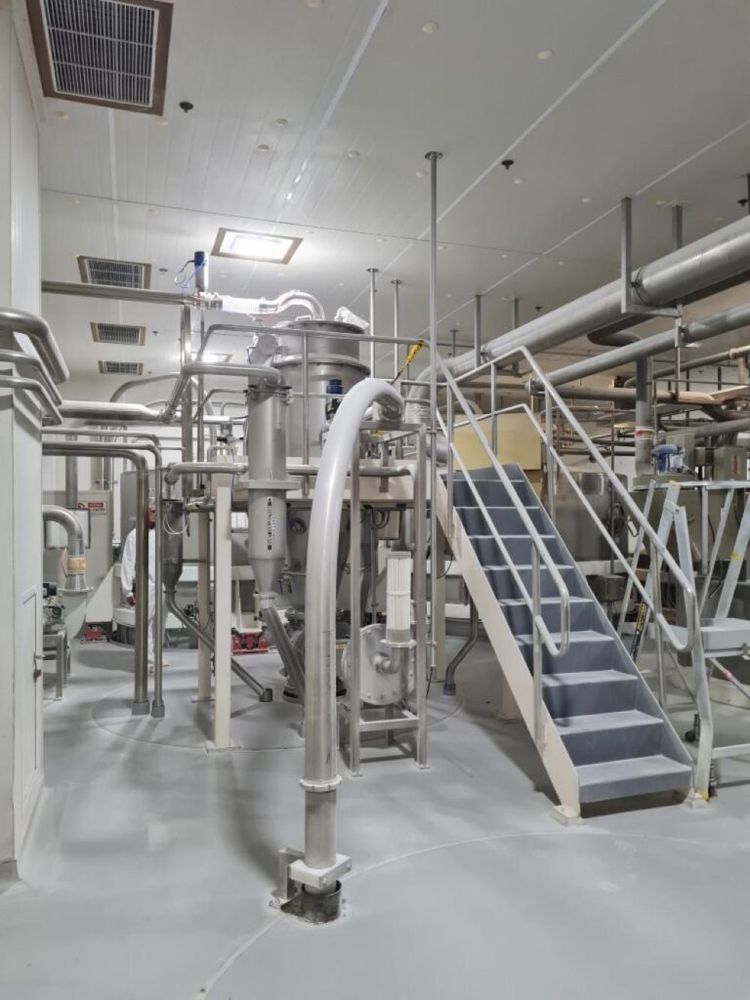

Complete Powder Compaction, Milling and Screening System

A complete dry granulation, milling, and screening line is now available following operation in a regulated New Zealand dairy environment.

This integrated system is suited to manufacturers handling powders that require controlled compaction, particle size reduction, screening, and improved material flow. For food and ingredient producers, it offers a practical solution for processing powders more efficiently while supporting consistency across production.

Whether the application involves powder densification, particle sizing, or improved downstream handling, this line brings together key processing stages in one complete setup.

Documentation Included

Equipment manuals
Instrumentation list
Functional description
FAT and calibration certificate
Drawings

Key Features
Improved powder flow
Reduced dust during handling
Controlled and repeatable particle sizing
Compaction prior to downstream processing
Screening for more consistent final product output

Technical Specifications
Maximum Capacity Throughput - 5,800 kilograms per hour
Rolls 16" (406.4mm) Long x 20" (508mm) Diameter Roller Speed between 6 to 24 rpm
Chamber Model No: HAS030, Capacity Factor: 9.05
Nominal Width 30" (762mm)
Screen Area 986 Sq Ins,
Rotor Diameter 17.25"
No Rotor Blades: 80
Maximum Rotor Speed 2,400 rpm
Maximum Power 110kW
Approximate Dimension 68" (1,727mm) Long x 60" (1,524mm) Wide x 75" (1,905mm) High

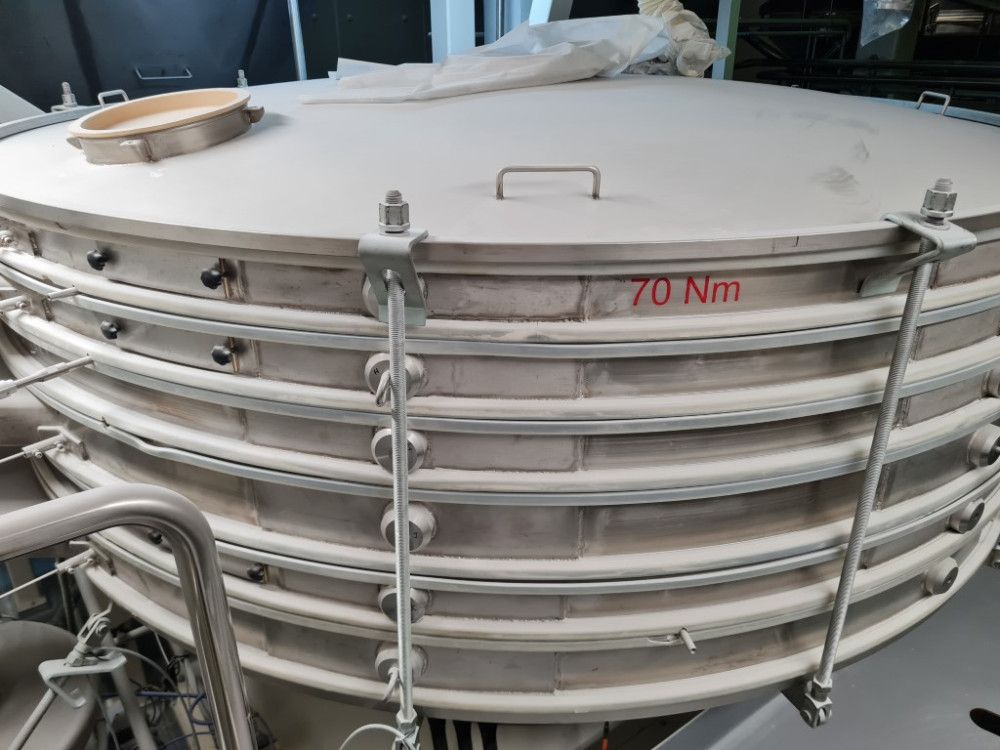

GKM Screen Model No: 2400 / 2600
Screen Area 5.31m Sq, Diameter 2.65m, Motor Power 7.5kW, Weight 2,700 kg, 5 Screen Decks x 2,046mm High.
