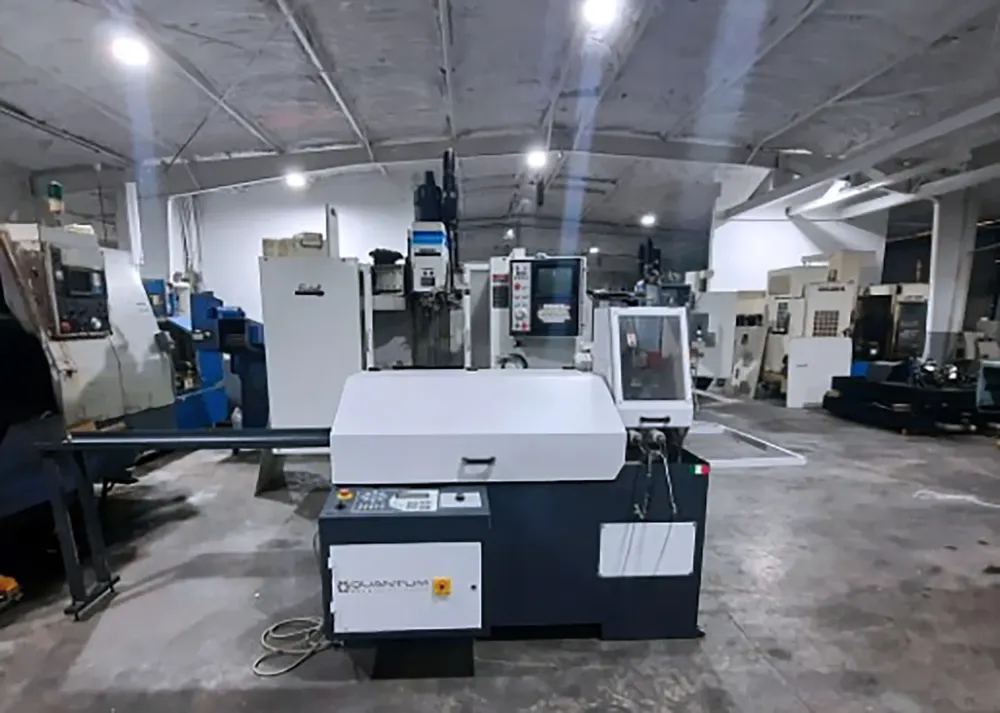

Quantum MACC TA 400-ATF Aluminum cutting saw CNC Controller

Round tube cutting capacity: 5.5 in (≈140 mm)
Square tube cutting capacity: 4.25 in (≈110 mm)
Solid round cutting capacity: 2.25 in (≈60 mm)
Rectangular tube cutting capacity: ~3.75 x 7 in (≈100 x 180 mm)

Blade speed: 3000 rpm
Maximum vice opening: 7 in (180 mm)
Blade size: 400 x 2.5 x 32 mm carbide tip

Voltage: 220V / 60 Hz / 3 phase
Weight: 1125 lbs (510 kg)
Overall dimensions (W x L x H): 150 x 63 x 67 in (3800 x 1600 x 1700 mm)

39 programs with 50 steps each (1950 cutting positions total)
Two pneumatic vices
Bar support arm with bar stop
Blade holder shaft on bearings
Teflon jaws for clamping
Fully automatic feed system
