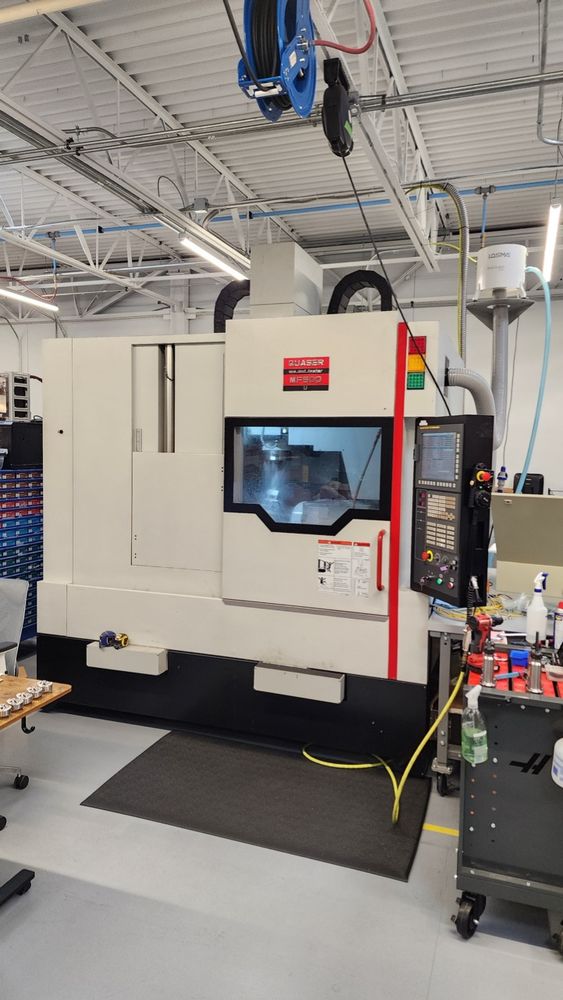

Quaser MF500U/15C 5 Axis

X-Axis Travel 21.65″
Y-Axis Travel 24.8″
Z-Axis Travel 24.0″
A-Axis Travel +30° ~ -120°
C-Axis Travel 360° Continuous

Table Diameter 16.14″
Max Swing 19.7″
Table Load Capacity 441 lbs
Max Workpiece Size 19.7″ × 11.8″
Table Surface To Spindle Nose 0.79″ ~ 20.9″
Spindle Taper BBT40
Max Spindle Speed 15,000 RPM
Tool Magazine Capacity 120 (Dual-Arm)
Max Tool Diameter 3.0″
Max Tool Diameter (Without Adjacent Tool) 4.9″
Max Tool Length 11.0″
Max Tool Weight 15.4 lbs
Tool Change Time (CTC) 9 sec
Repeatability (ISO 10791-4) 0.0003″
Machine Height 125″
Floor Space (W×D) 89.8″ × 126.8″
Control FANUC 31i-B5 CNC Control System
Automatic Tool Changer 120 Tool (Dual-Arm)
Rotary/Trunnion Table Full 5-Axis
Spindle 15,000 RPM
Coolant Through Spindle System
Automatic Lubrication System
Chip Conveyor
Rigid Tapping
Work Light And Status Light
All Available Manuals
