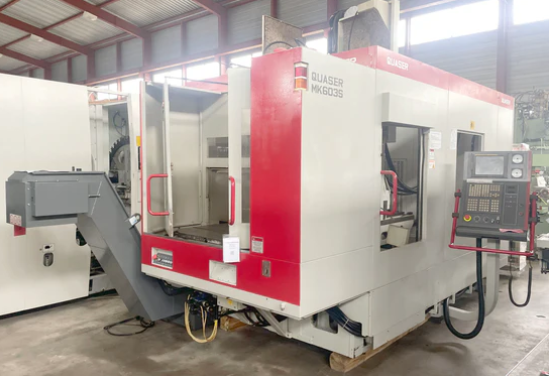

Quaser MK603SP/12B 3 Axis

1020 mm X-axis travel
610 mm Y-axis travel
600 mm Z-axis travel
350 mm workpiece height
1630 mm workpiece diameter
130–730 mm spindle-to-table distance
FANUC control
400 l coolant system
Coolant through spindle 20 bar
Chip conveyor
Electronic handwheel
Spindle oil cooler
RS232 interface
Ethernet interface
70 mm spindle diameter
80–1200 rpm spindle speed
192 Nm spindle torque
30/22 kW spindle power
ISO40 spindle nose
DIN 69871 pull studs
20000 mm/min feed range
36 feeds
48-position tool magazine
75 mm tool diameter
125 mm tool diameter with free adjacent pockets
300 mm tool length
7 kg max tool weight
2.5 s tool change time
6 s chip-to-chip time
300 kg table load
1050 x 550 mm table size
6–8 bar air
400 V voltage
45 kVA total power required
12000 kg machine weight
4650 mm machine length
2930 mm machine width
3300 mm machine height
