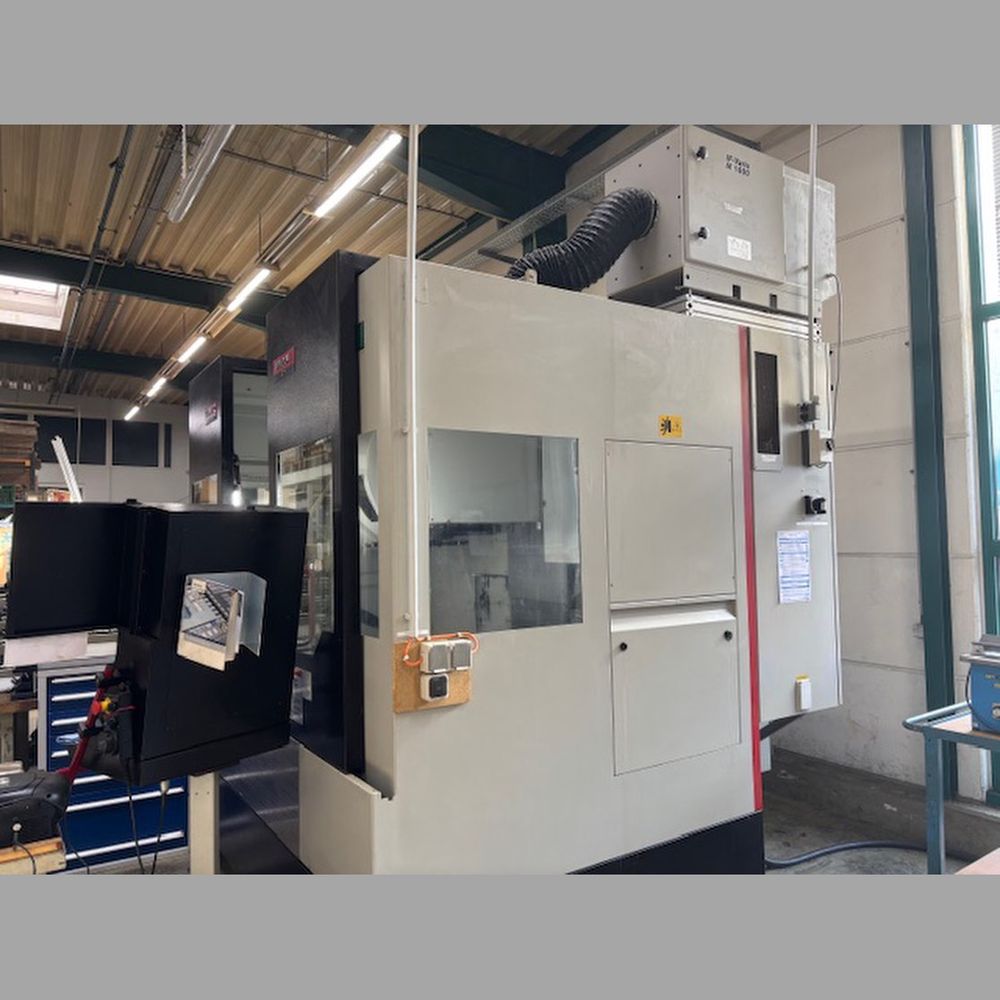

Quaser MV 204 C 3 Axis

QUASER MV 204 C
Control: Siemens 828 D
New in: 2015


Maschine on approx. (hrs): 12620
Programme run approx. (hrs): 3780

MILLING
Travel in X 1250 mm
Travel in Y 650 mm
Travel in Z 600 mm
Max. rapid traverse in X/Y/Z 24/24/16 m/min
Max. acceleration in X/Y/Z 3/3/3 m/s2
Linear glass scales X/Y/Z
Tool taper SK 40
Max. speed milling spindle 10.000 1/min
Max. power at 10-40/100% duty ratio 16,5/- kW
Max. torque at 10-40/100% duty ratio 105/- Nm
Tool magazine 30 stations
Rotary table NC-controlled (Lehmann 500)

FURTHER EQUIPMENT
IR-measuring probe
Fully enclosed work area
Light in working area
Oil-/emulsion mist extraction unit
Chip conveyor
Machine operates/operated with emulsion
Internal coolant supply
Air through spindle
Flush gun
Coolant unit
Modem for remote diagnosis and TeleService
Siemens Shopmill
Mobile operating device for the setup operation inkl. Electronic handwheel

GENERAL TECHNICAL DATA
Total power requirement 20 kVA
Machine dimensions (LxWxH) approx. 3920x3240x3280 mm
Machine weight approx. 9300 kg
