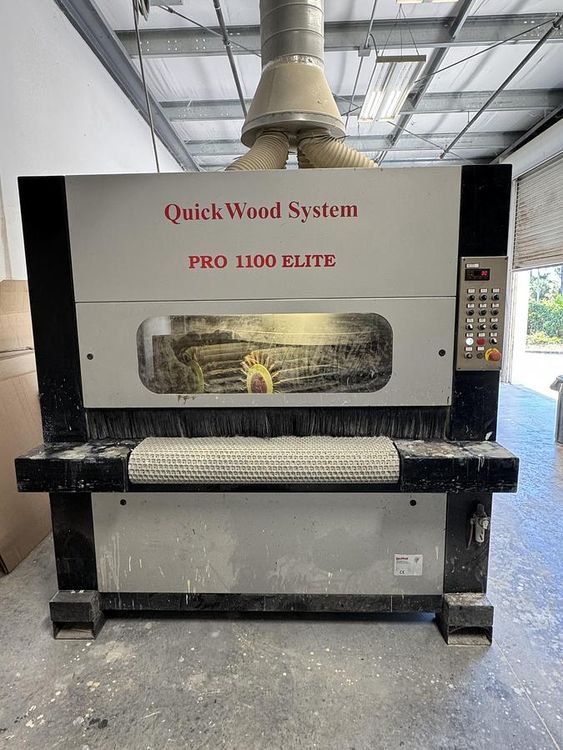

Quickwood PRO 1100 ELITE

Condition Used
Height max. 100mm,
Width max. 1100mm,
Length infinite
Trough feed width m/min. 2-12
Spindle speed RPM 300-1150
Rotation speed RPM 3-16
Spindle length 90mm
Number of spindles 8
Diameter of tool max. 350mm
Main motor kW 4 x 1.5,
Frequency alternator spindles kW 7.5,
Conveyor motor kW 1.1,
Rotation motor kW 1.1,
Vacuum pump kW 11,
Height adjustment kW 0.45,
Dust collection duct mm 4 x 140,
Exhaust capacity m³/h 5600 8000,
Net weight kg Aprox. 1800

8 parallel counter rotating brushes on staggered centers of rotation, height adjustable electrically installed on the carrousel;
Vacuum feed belt high grip, width of 1100 mm;
Vacuum pump from 15 kW or an effective seal of the pieces;
Control of the speed of the brushes, the carousel and the BELT.
