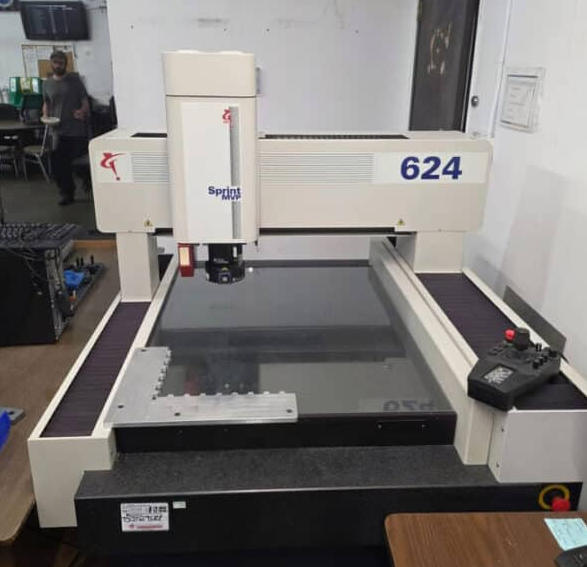

QVI SPRINTMVP 624

X-axis travel 24.56 in
Y-axis travel 24.56 in
Z-axis travel 7.87 in
X-axis scale resolution 0.5 µm
Y-axis scale resolution 0.5 µm
Z-axis scale resolution 0.5 µm

Motorized 3-axis measurement system
Moving bridge style stage drive system
Single Y-axis scale
Friction drive mechanism
Profile illumination
Oblique illumination
Coaxial illumination
CAD import function
Computer included
Keyboard included
Mouse included
24 in monitor included
QC-Calc real-time SPC data collection software
DRS laser sensor
High-resolution color camera
Green LED backlight illumination
White coaxial surface light
Programmable 7-sector / 6-ring vector light
Motorized zoom lens 6.5:1 ratio
Working distance 58 mm
Precision mechanical bearing XYZ transport
DC servo motor drives
3-axis joystick control
QVI Measure-X metrology software
Icon toolbox
Graphic model display
Calibration routines

Maximum recommended stage load 110 lb on glass
Maximum recommended stage load 220 lb on observation platform
