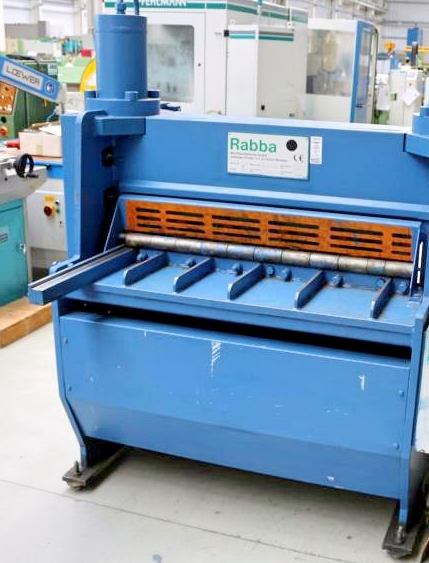

Rabba HS 12/1000

Sheet width: 1030 mm
Plate thickness: 12.0 mm
Thickness for stainless steel: 8.0 mm
Blade length: 1050 mm
Cutting angle: 3.0°
Number of strokes: approx. 10 strokes/min
Back stop adjustable: 500 mm
Table height: 900 mm
Operating pressure: max. 280 bar
Oil volume: 150 l
Engine output: 11.0 kW
Weight: 1900 kg
Range L×W×H: 1550 × 1150 × 1600 mm

Conventional control
Heavy/robust electro-hydraulic sheet metal plate shear
Machine body in closed all-steel welded construction
Knife upper cheek slides in long downward direction over knife edge
Protruding plastic guides
Hydraulic cutting via two hydraulic cylinders
Upper beam returns to starting position via side spring batteries
Manual back gauge, adjustable from rear
Adjustment by handwheel with mm scale
Manual cutting gap adjustment
1 side stop with mm scale and T-slot
Foot switch for lifting version
Rear sheet metal slide
Instruction manual
