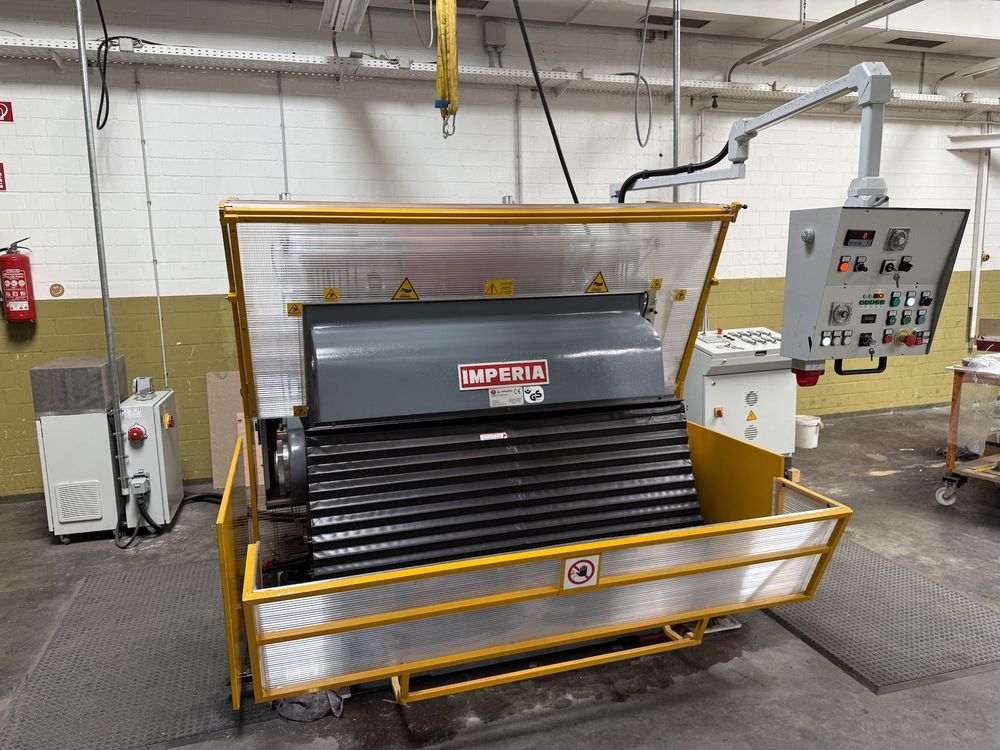

Rabolini Imperia F Gold

Imperia „F“ Gold with Hot Foil stamping
platen die-cutter with hot foil stamping / embossing unit (gold blocking), with extended opening.
IMPERIA GOLD is the ideal gold blocking machine for the hot foil stamping and embossing of cardboard sheets,
for fine packings of quality products, boxes for cosmetics, perfumes, spirits, as well as greeting cards and personalized shoppers, and so on.

Max. Sheet Format: 120 x 165 cm
Punching force: 380 tons
Performance: up to 1300 sheets/hour
Max. solid cardboard thickness: 1,6 mm
Max. Corrugated Cardboard thickness: 7 mm
Min. solid cardboard: 300 gr

Equipment:
Safety rules as described in CE and G.S: 2x Safety Mats and additional safety precautions at the machine.
Pneumatic brake-clutch system with safety valve
Automatic Central lubrication
Control Panel with rotatable Arm
Operation Modes: Single, Timer, Continuous
Time setting at Control Panel: Time between opening and closing 1 – 6 seconds
Second Timer for timed operation in closed position
Batch Counter
Hardened and ground Die Plate, 50 HRC, 5 mm
1x Universal locking Frame with Electric Motor
Pressure Fine Tuning (Micrometric pressure adjustment of the platen die-cutter)
Extended Opening of the Die-Cutter
Hot stamping and Hot Foil stamping Unit
- Control Panel with Touchscreen
- 3x independent Foil Feeding Units (Each one controlled at Control Panel)
- 8-zone Heating Plate (50-180 grad Celsius)
- 2x Drilled Frames with M6 x 17mm holes enabling the direct fitting of cliché, Thickness of cliché 7 mm
Tools, accessories and books
