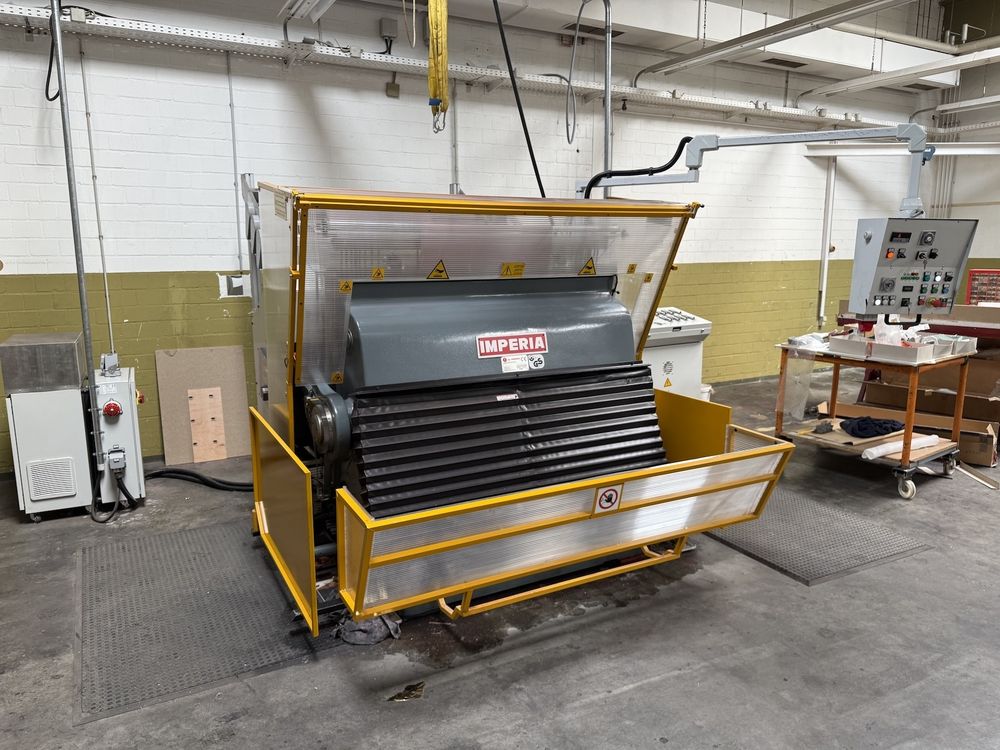

Rabolini IMPERIA F
EUROPE (Western and Northern)
Max. size: 1200x1650 mm
Mech. speed: 1200/h
Power pressure: 360.000 kg
Machine weight approx.: 11000 kg
Safety rules as described in CE and G.S: 2x Safety Mats and additional safety precautions at the machine.
Pneumatic brake-clutch system with safety valve
Automatic Central lubrication
Control Panel with rotatable Arm
Operation Modes: Single, Timer, Continuous
Time setting at Control Panel: Time between opening and closing 1 – 6 seconds
Second Timer for timed operation in closed position
Batch Counter
Hardened and ground Die Plate, 50 HRC, 5 mm
1x Universal locking Frame with Electric Motor
Pressure Fine Tuning (Micrometric pressure adjustment of the platen die-cutter)
Extended Opening of the Die-Cutter
Hot stamping and Hot Foil stamping Unit
Control Panel with Touchscreen
3x independent Foil Feeding Units (Each one controlled at Control Panel)
8-zone Heating Plate (50-180 grad Celsius)
2x Drilled Frames with M6 x 17mm holes enabling the direct fitting of cliché
Thickness of cliché 7 mm
Tools, accessories and books
