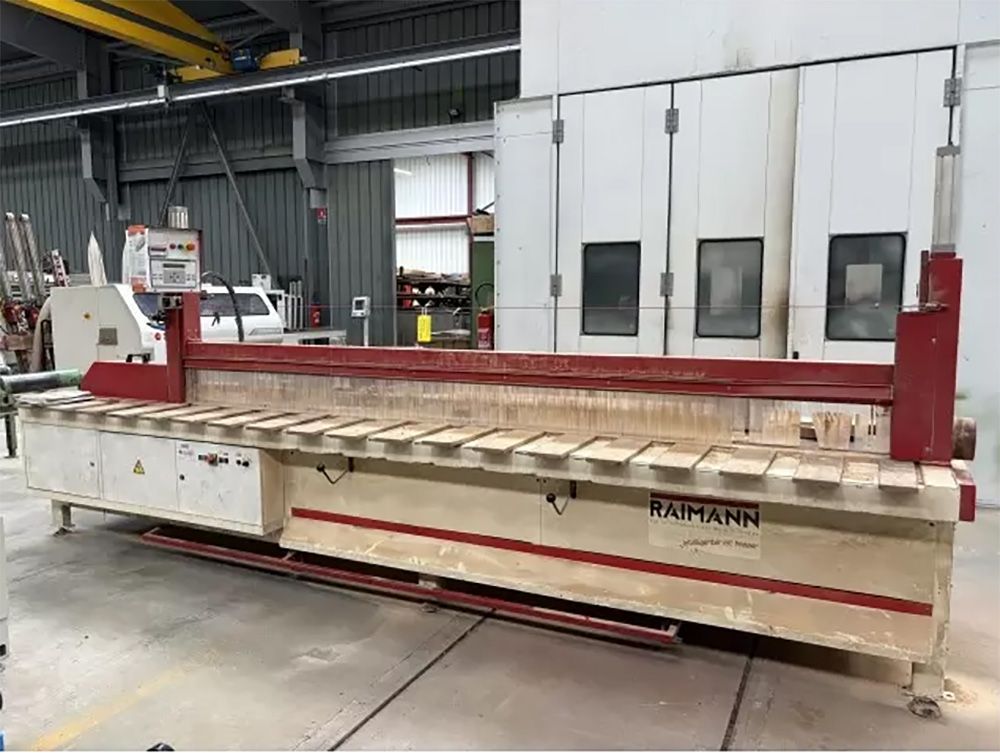

Raimann FLS 170 RIP-OFF SAW

MACHINING CAPABILITIES:
- Maximum wood section (thickness-height x width)
125 to 170 mm depending on the blade mounted x 400 mm
- Usable length 3.20m
- Digital control and digital display for width
- Blade speeds: 2900 rpm
- Variable carriage feed speed: 0-80 m/min

COMPOSITION :
- Constructed from welded steel
- Main table: 4900 x 1200 mm
Height from the ground (working height): 87 cm
- Pre-assembled Ø500mm blade with its riving knife
Blade Ø450 to 550 mm Ø80 mm
Flange Ø130mm
- Part ejector towards the operator (on rack and pinion)
- Laser line of faith

MACHINE SPECIFICATIONS :
- General power supply 400V. Three-phase 50Hz, nominal current 27A
- Main motor 11 kW (15 hp) RPM: 2890
Suction inlet: top Ø160mm, bottom Ø160mm
- Recommended flow rate 4340 m³/h - minimum speed 30 m/sec
- Pneumatic supply 10 bar, required working pressure 6 bar
- CE marking, Lockable disconnect switch, Emergency stop buttons (+line)
Retractable blade, standard protections

Transport dimensions (LxWxH): 5.00 x 1.30 x 2.00 m
Weight 1500 kg
