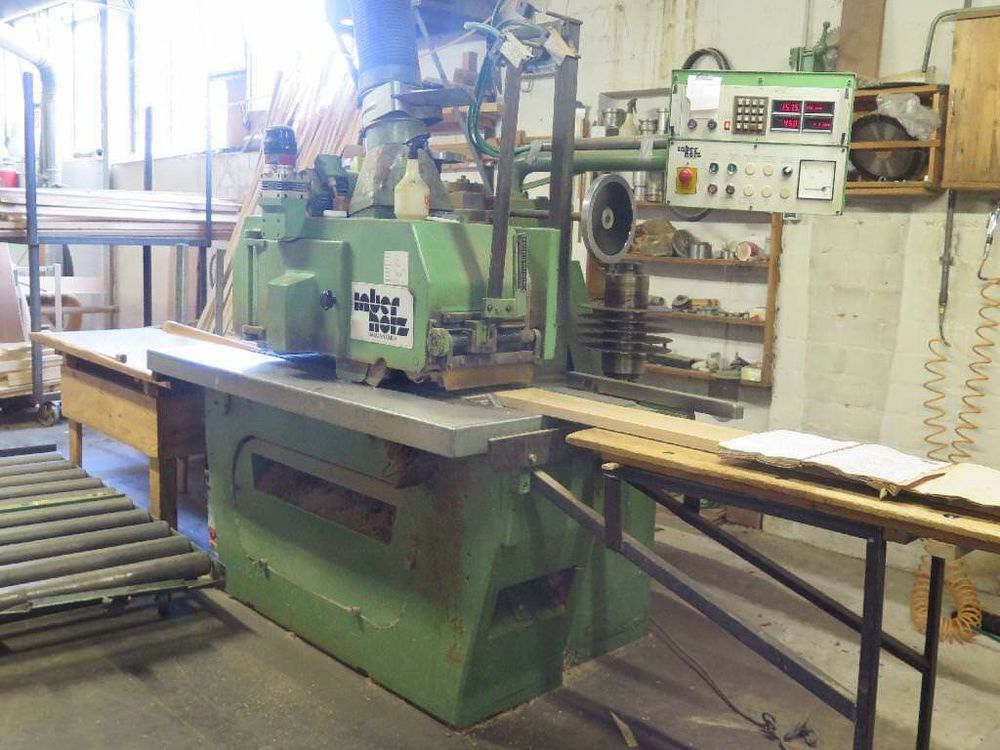

Raimann K 23 E Multi-rip saw

With blade adjustment
With 2nd bushing
With 3 laser lights
Control unit for positioning control

Cutting height without pressure rake 120 mm
Maximum cutting height with pressure rake 110 mm
Maximum cutting height with movable saw blade without pressure rake 105 mm
Cutting width 230 mm
Chain width 250 mm
Saw blade diameter maximum 360 mm
Saw blade diameter minimum 250 mm
Feed speed 8 - 35 m/min.
Feed motor 1.1 kW
Saw motor 37 kW
Saw shaft diameter 65 mm
Saw blade bore 80 mm

Shortest timber length at 110 mm cutting height without pressure rake 750 mm
Shortest timber length with pressure rake 290 mm
Maximum passage width from machine stand 460 mm

Table height 850 mm
Table length 1770 mm
Dimensions 2400 mm x 1500 mm x 1600 mm
Weight approx. 2,500 kg
