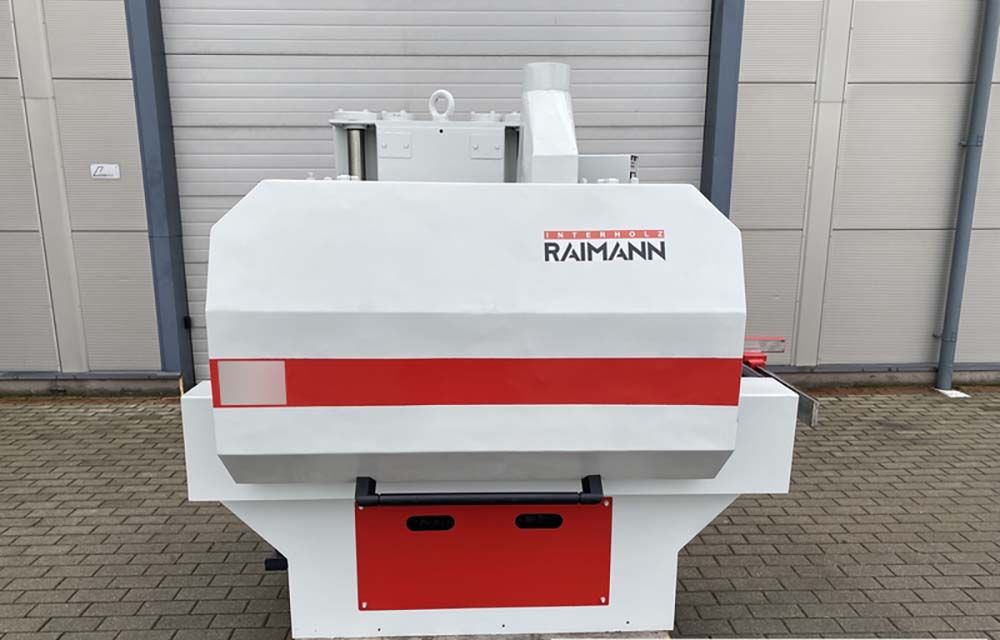

Raimann KS 310 330/120 MULTISAW
Ref :
2745719-15-AW
Condition :
Used
Manufacturer :
Raimann
Model :
KS 310 330/120
Short Description :
MULTISAW
Year(s) :
1995
Quantity :
1
Location :
Seller or machines location:
EUROPE (Central and Eastern)
EUROPE (Central and Eastern)
TECHNICAL PARAMETERS:
Cutting width: 330 mm
Max. cutting height: 120 mm
Motor power: 22 kW
Option to install a cutting pad
Min/max disc diameters: 250 / 360 mm
Electric height adjustment
Feed speed: 11 - 41 m/min
Feed motor power: 1.5 kW
Max. workpiece width: 800 mm
Minimum workpiece length: 800 mm
Minimum workpiece length with cutting pad: 400 mm
Four upper pressure rollers
Spindle diameter: 65 mm
Collet diameter: 80 mm
Connection diameter: 150 mm
Machine dimensions (L / W / H): 200 / 180 / 210 cm
Weight: ~2200 kg
