Kleinewefers, Ramisch Kleinewefer 300 Cm with NIPCO roller
EUROPE (Western and Northern)
Top roller: steel
lower: Nipco with Racolan (Nylon) sleeve
Roller width 3000mm
Working width 2800mm
Speed 3-45 m/min (has been reduced from 10-100m/min)
pressure 50-200 N/mm
Heating is steam, steam boiler not included.
No metal detector
Batching arm on exit side
2 cooling rollers on exit side
Running as a stand-alone calender but can also be used as in-line calender (external speed control)
The calender includes the following:

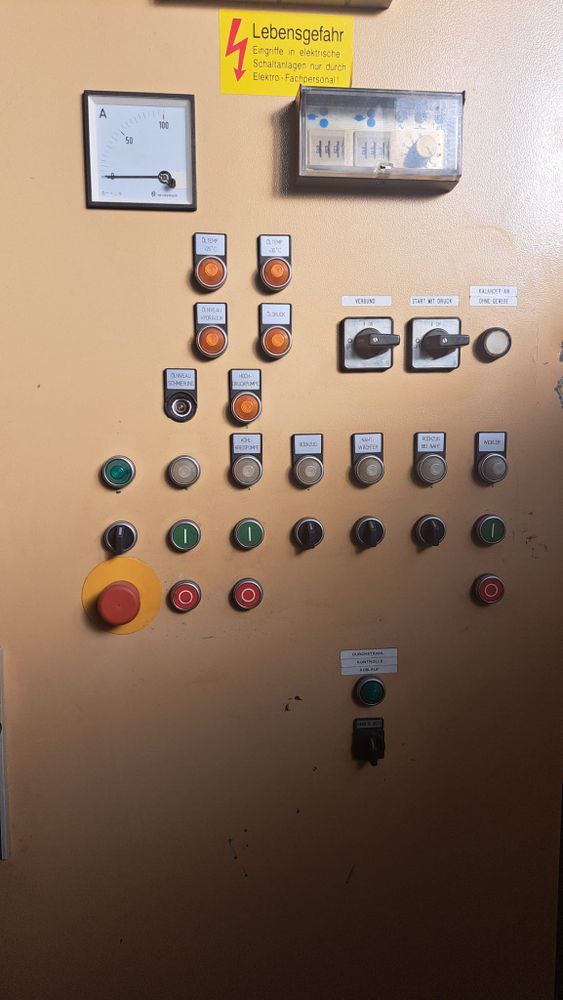

Large hydraulic pack powering the Nipco roller. The basic control panel (start, stop, pressure, lift, speed) is mounted here
Small hydraulic pack powering the batcher arm
Electrical cabinet
2 loose rollers, for guiding the fabric if needed.
Original manual and electrical diagram in German
Connected to electricity and running, but it's not connected to a heat source so the top roller is not currently heated.
