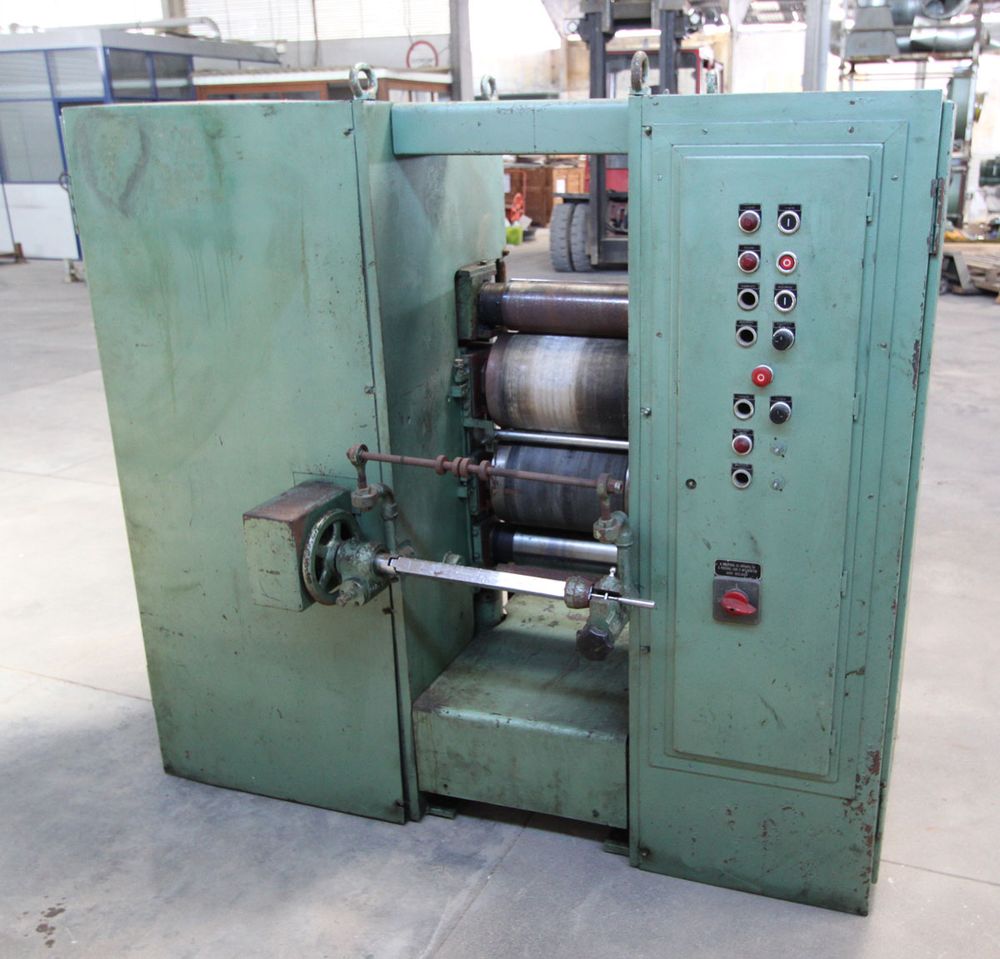

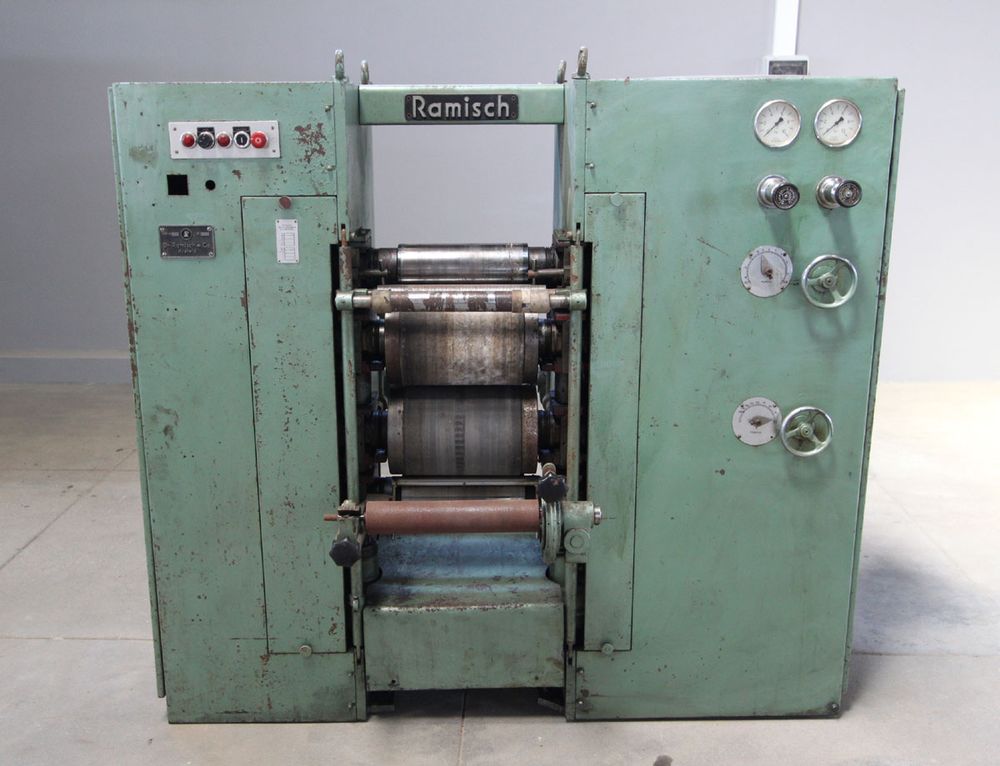

Ramisch RK 46P, Laboratory 4-roll calander

Ref : 2172364-1-AW
Condition : Used
Manufacturer : Ramisch
Model : RK 46P, Laboratory 4-roll calander
Year(s) : -
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)
Last check : 13 Jan. 2023

face roller width 300 mm
working width 250 mm
calander indicated for following processes: rolling, glaze, friction, mate, Schreiner and embossing,

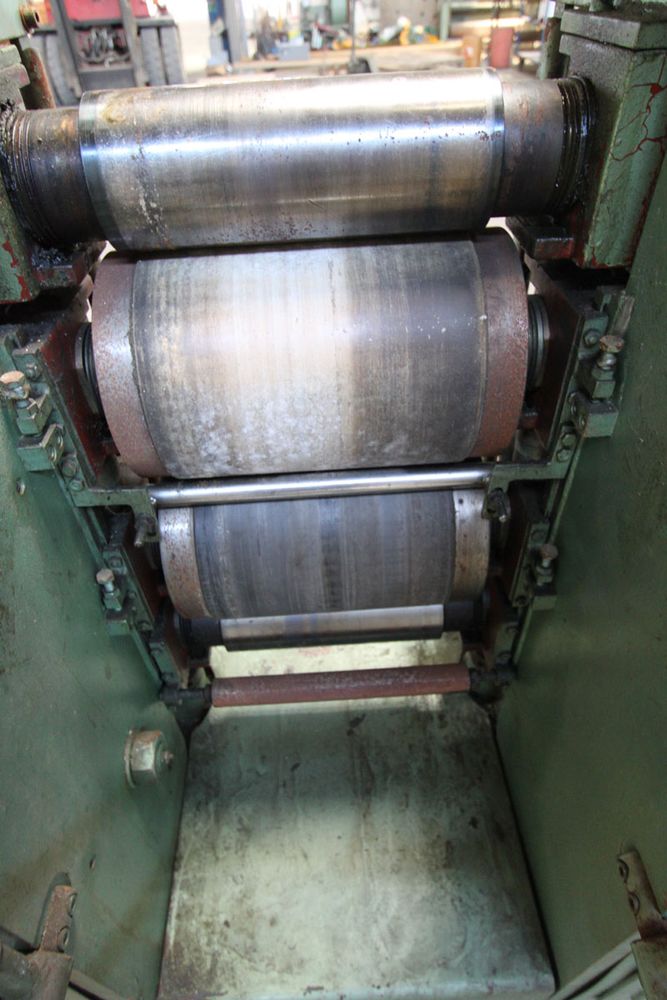

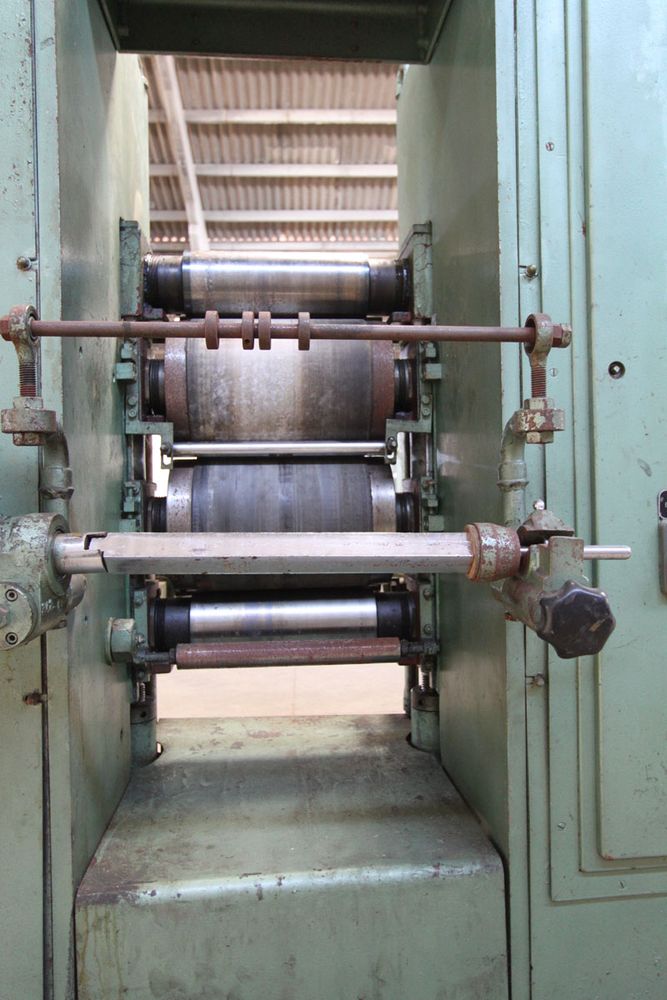

4 rollers

with the following distribution (top to bottom):
steel diameter 120 mm
paper diameter 240 mm
cotton diameter 240 mm
steel diameter 120 mm
both the steel rollers are electrically heated
linear speed adjustable up to 20 m/min.
pressure adjustable up to 195 N/mm = 6 tons
unwinding from roller max. 300 mm diameter
winding to roller max. 300 mm diameter
double fabric spreader
central lubrication system to the 8 roller plain bearings

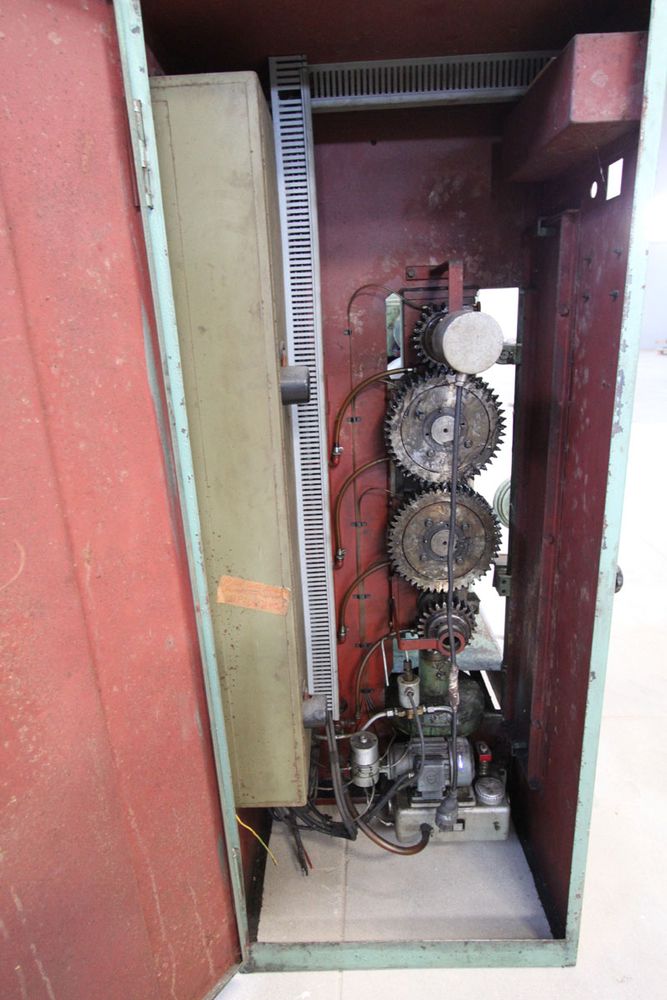

all rollers are connected through tooth wheels
friction possible and adjustable between 0 and 200%
weight of the machine 2300 Kg
dimensions width 1780 mm, depth 1250 mm, height 1600 mm
Max temperature is 250 Celsius

Machine is in our warehouse and if you require we can run it empty
