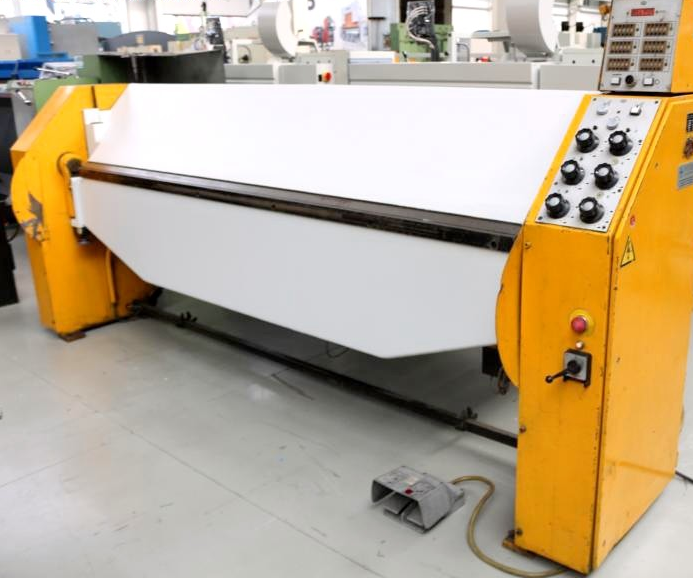

Ras 64.25 Sheet width: 2540 mm
Ref :
2750881-3-MT
Condition :
Used
Manufacturer :
Ras
Model :
64.25
Sheet Size :
Sheet width: 2540 mm
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Plate thickness: 2.5 mm
Upper clamping bar adjustment: 200 mm
Lower beam adjustment: 30 mm
Bending speed: 5.5 sec / stroke
Max bending angle: 0–180°
Control type: RAS NC
Motor power: 2.6 kW
Weight: 1750 kg
Machine dimensions (L×W×H): 3150 × 1200 × 1400 mm
Features:
Robust electro-motorized swivel bending machine
Bending angle adjustment via electrical potentiometer
Multiple/subsequent bends possible
Electro-motorized back stop
Rear sheet support surface
Manual lower beam adjustment
Freely movable double foot switch
Operating instructions (PDF)
