Ras 73.30

Sheet Width: 3200 mm
Plate Thickness: 3.0 mm ST
Thickness at Stainless Steel: 2.0 mm
Opening Width Upper Beam: 300 mm
Opening Speed: 40.0 mm/sec
Bending Beam Adjustment: 80.0 mm
Work Height Max: 900 mm
Bending Speed: 90.0°/sec
Control: MULTIBEND 5000
Back Stop Adjustable: 10–1550 mm
Accuracy: ±0.1 mm
Air Pressure: 5.0 bar
Working Hours: approx. 1000 h
Power Requirement: 2x 4.0 kW
Voltage: 400 V
Weight: 4400 kg
Dimensions L-W-H: 4295 x 2225 x 1775 mm

Motorized universal swivel bending machine
High-precision mechanics with modern control technology
For individual and series production
Robust high-speed machine with high axis speeds
Torsion-free welded construction
RAS CNC control model MULTIBEND 5000
Material and tool library
Swiveling front right
1x Emergency stop button
CNC electro-motorized upper beam adjustment
Programmable opening and closing height
Rigid upper beam for straight bending parts

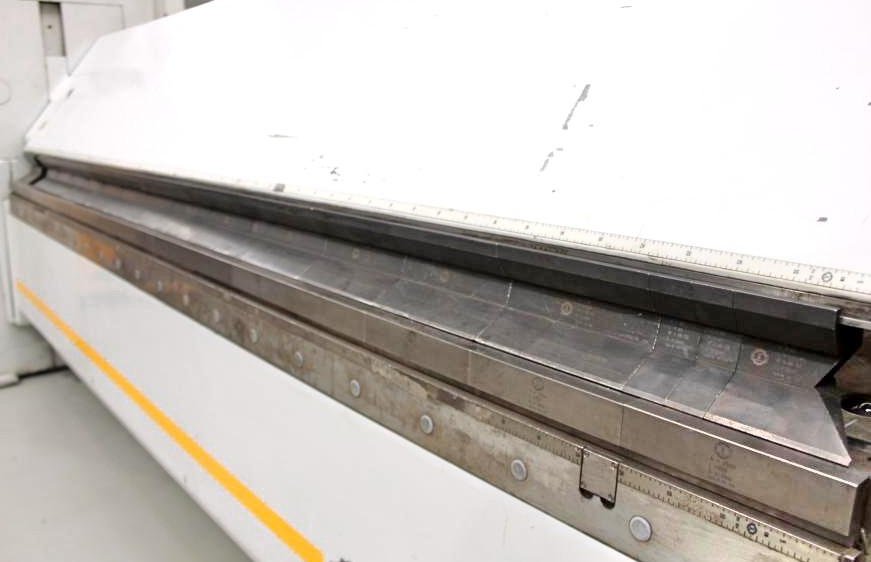

1x Set of RAS split upper tools height 80 mm
RAS click-in tool system
CNC electro-motorized bending beam adjustment
Crowning system compensates deformation by bending forces
1x Set of RAS split bending tools
CNC electro-motorized back stop
Stainless steel table plates with ball rollers
2x Freely movable double foot switch
1x RAS tool trolley for bending tools (movable)
Operating instructions (PDF) + original circuit diagram
