Ras 83.20

Sheet width 2040 mm
Plate thickness 3.0 mm
Thickness at stainless steel 1.5 mm
Number of strokes 50 strokes/min
Cutting angle 1.4°
Table height 750 mm
Distance between columns 2120 mm
Back stop adjustable 1.0 - 550 mm
Column arm 100 mm
Control manual
Engine output 5.5 kW
Weight of the machine ca. 2050 kg
Dimensions of the machine ca. 2600 x 1980 x 1400 mm

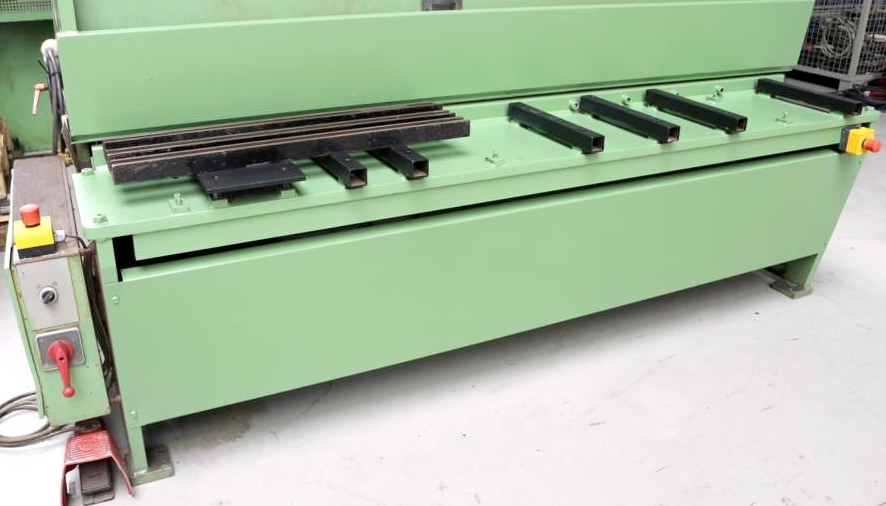

Robust motorized swing-cut guillotine shears
Shatterproof torsion-free steel welded construction
Compact and clear mechanical design
Manual backgauge with analogue position display
Adjustable from the front
Continuous adjustment over the entire travel range
Adjustment range 1.0 - 550 mm
Machine side stand with projection 100 mm
Manual cutting gap adjustment
Hold-down bar
Long side stop
Two support arms
Freely movable foot switch
Rear sheet metal slide
Two emergency stop buttons at the front
Connection cable including plug
Original instruction manual
