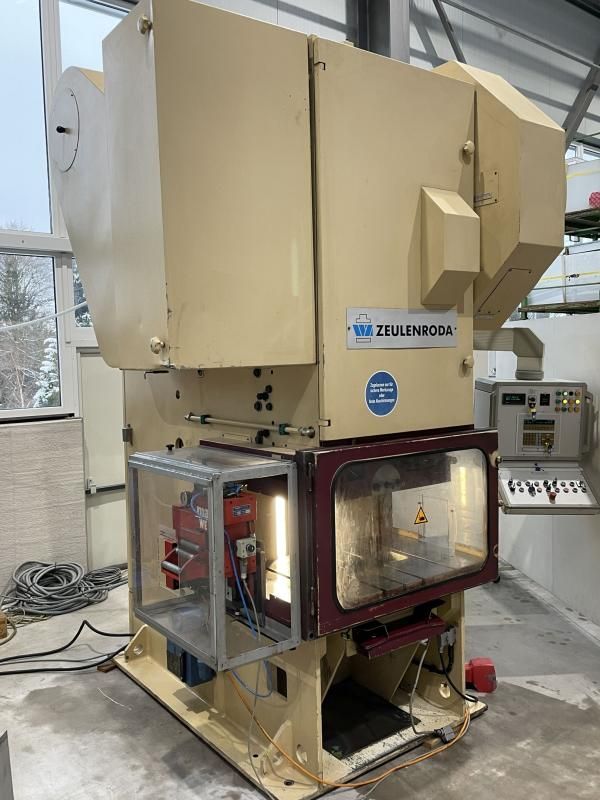

Raster PDA 100 100 ton

Throat depth: 360 mm
Table size: 1200 x 710 mm
Ram face: 900 x 500 mm
Table opening: 400 x 120 mm
Stroke adjustment: 6–82 mm
Ram adjustment: 100 mm
Installation height at max stroke, ram at TDC: 469 mm
Installation height at max stroke, ram at BDC: 387 mm
Stroke rate: 50–200 strokes/min
Main motor power: 18.5 kW
Power supply: 400 V, 50 Hz
Hydraulically actuated multi-disc wet clutch
Spring-loaded safety brake
Infinitely variable drive via PIV gearbox
Creep speed for automatic stroke adjustment and setup work
Hydraulic overload protection in ram
Press force and process monitoring UNIDOR APS
Pneumatic infinitely adjustable ram counterbalance
Roller feed MABU WE16
Feed width: 160 mm
Feed thickness max: 3 mm
Strip cross section max: 300 mm²
Roller diameter: 63 mm
Strip speed: 40 m/min
Programmable feed length
Feed control via Siemens machine control
Centralized grease lubrication system
Operating manual and press documentation
Space requirement L x W x H: 270 x 240 x 350 cm
Machine weight: 13.5 ton
