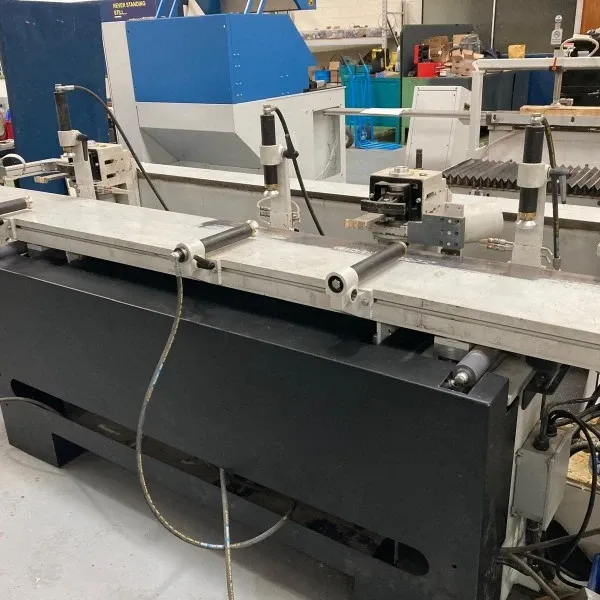

RDC 3M Mortiser

Automatic mortising machine with 3 heads ideal for mortising of doors, gates, gate posts, general joinery
Worktable dimensions 3000 x 300mm
Cast iron construction to give maximum rigidity
3 x vertical hydraulic work piece clamps
3 x horizontal hydraulic work piece clamps
Speed movement is adjustable through hydraulics
Automatic operation

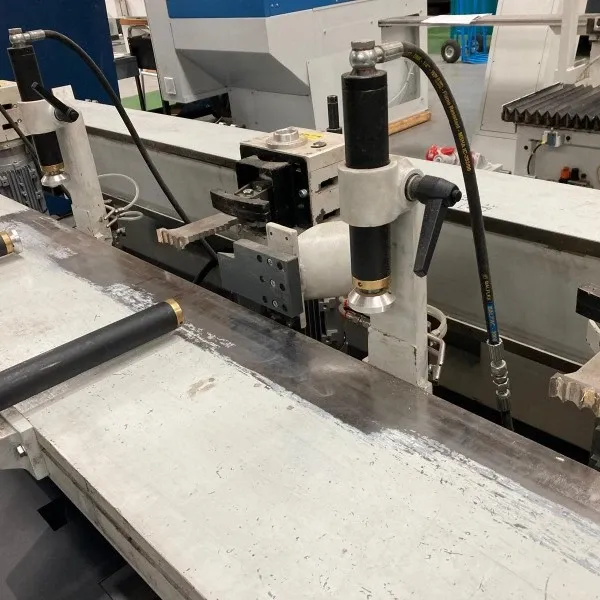

3 x Mortising heads each :
Manually positioned in X axis with mechanical locks
Mechanical siko readouts for height position - Z axis
Double eccentric operation of the heads (patented design)
Each mortise head Motor HP3
RPM 2800mm
Max distance between 2 x outside mortising heads 2800mm
Min distance between 2 x outside heads 180mm - centre to centre of mortise.
Dust extraction outlets 100mm
Hydraulic pump motor 10hp
