Red Bud Cut To Length Line 84" x 0.393" x 80,000# Max Coil O.D.: 84" (2,135 mm)

Strip Width: 24" - 84" (600 - 2,135 mm)
Strip Thickness: 0.040" - 0.315"/0.393" (1 - 8 mm/10 mm)
Max Plate Length: 47' (14,500 mm)
Reference Material Tensile Strength: 50,000 PSI (350 N/mm²)
Max Tensile Strength: 101,000 PSI (700 N/mm²)
Max Coil Weight: 80,000# (36 Ton)
Line Direction: Left to Right
Coil Storage: 4 Coils

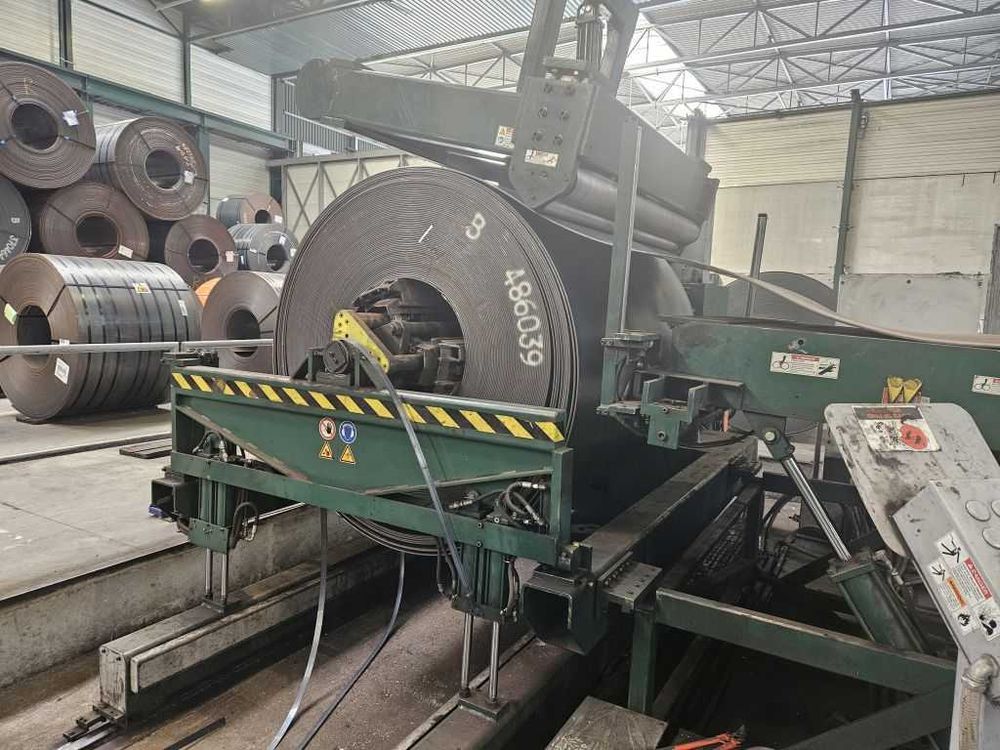

Coil Car: Pit Type
Uncoiler: Mandrel Type
Hydraulic Expansion: 18.5" - 20.5" (470 - 520 mm)
Coil I.D. Range: 20" - 24" (30", 33.5", 35.4" with Pads)
Holddown Arm: Hydraulic
Sliding Base: Hydraulic
Outboard Mandrel Support
Strip Edge Control
Coil Opener / Pinch Roll Unit
Telescopic Table: Hydraulic
Crop Shear: Hydraulic
Cutting Edges: Quadruple
Cutting Gap Adjustment
Scrap Cart
Leveler: 4 HI Design
Number of Leveling Rolls: 11
Leveling Roll Diameter: 6" (152 mm)
Number of Backups Top/Bottom: 6/6
Entry/Exit Height Adjustment
Top Leveling Roll Opening: Hydraulic
Main Drive Motor
Brushing and Exhaust Station with Filter
Double-Stub Edge Trimmer
Trimming Width: 0.078" - 2" (2 - 51 mm)
Cutting Gap Adjustment: Electromechanical
Immersion Depth Adjustment: Electromechanical
Strip Width Adjustment: Electromechanical
Main Drive
Scrap Choppers: Butech
Scrap Strip Width Adjustment: Electromechanical
Looping Pit Equipment
Stretch Leveler
Max Stretching Length: 24.6' (7,500 mm)
Stretching: Hydraulic
Gripper: Hydraulic
Stretching Degree: Adjustable
Hydraulic Unit Drive / Hydraulic Pump Drive
Brushing and Exhaust Station with Filter
Feeder
Shear: 50 SPM Max.
Holddown Device
Holddown Pressure: Adjustable
Blade Cutting Edges: 4
Cutting Gap Adjustment: Electromechanical
Cutting Angle Adjustment: Electromechanical
Inkjet Printer
Pinch Roll Unit
Automatic Stacker
Length Stop Adjustment: Electromechanical - 24.6' Max. (7,500 mm Max.)
Width Stop Adjustment: Electromechanical
Pallet Roller Table Adjustment: Electromechanical
Pallet Supply: Lateral
Pallet Roller Table with Banding Station: Orgapack
Pallet Roller Table with Balance
Automatic Positioning of Wood Spacers
Hydraulics
Electrics: Allen Bradley
Installed Power: 523 kW
Voltage: 400 V / 50 Hz
