Morrison, Reed Chatwood BW.54.5 Ball Warping with Indigo Rope Dyeing

Ball Warping
3 x Reed Chatwood Ball Warpers
Model: BW.54.5
With Reed and Rope Condensing Feed Stand
In-Line Magazine Transfer Creels
396 Running Ends / 396 Ends Reserve
6 High × 33 Long × Double Sided (14-inch package centers)
Triple Post Tension Units
Electronic Stop Motions
10 Circulating Fans Each Side
Outside Loading / Inside Discharge
Completely Rebuilt 2007 – Not Used Since 2010

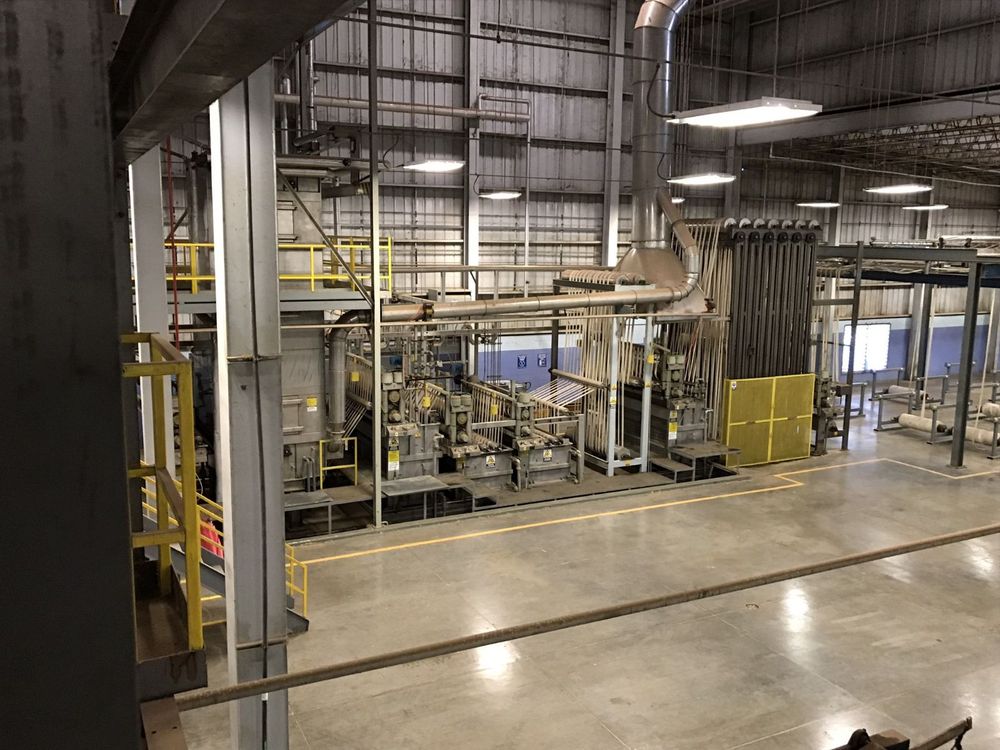

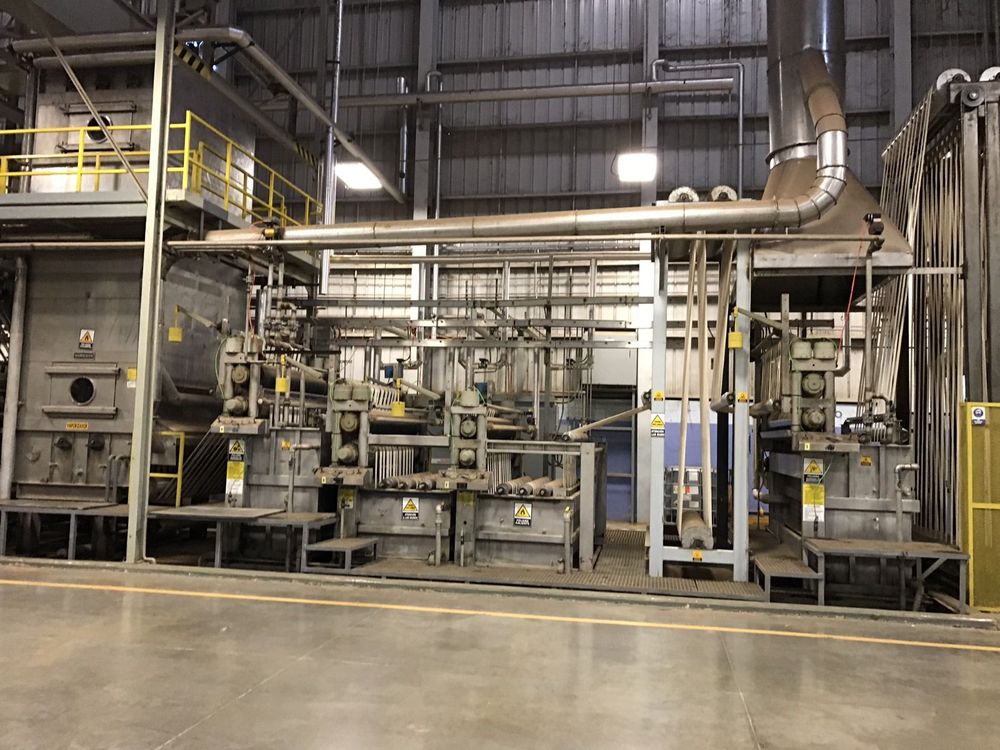

Indigo Rope Dyeing
1 x Morrison Indigo Rope Dye Range
Width: 90 inches
24 Ropes
Magazine Ball Warp Creel – 48 Ball Stands
6-Strand Rope Time Delay Accumulator (30 ft height)
1 Morrison Pre-Treatment Wash Box (with 10-ton Nip Roller on exit)
3 Morrison Sulphur Bottoming Treatment Boxes (each with 10-ton Nip Roller on exit)

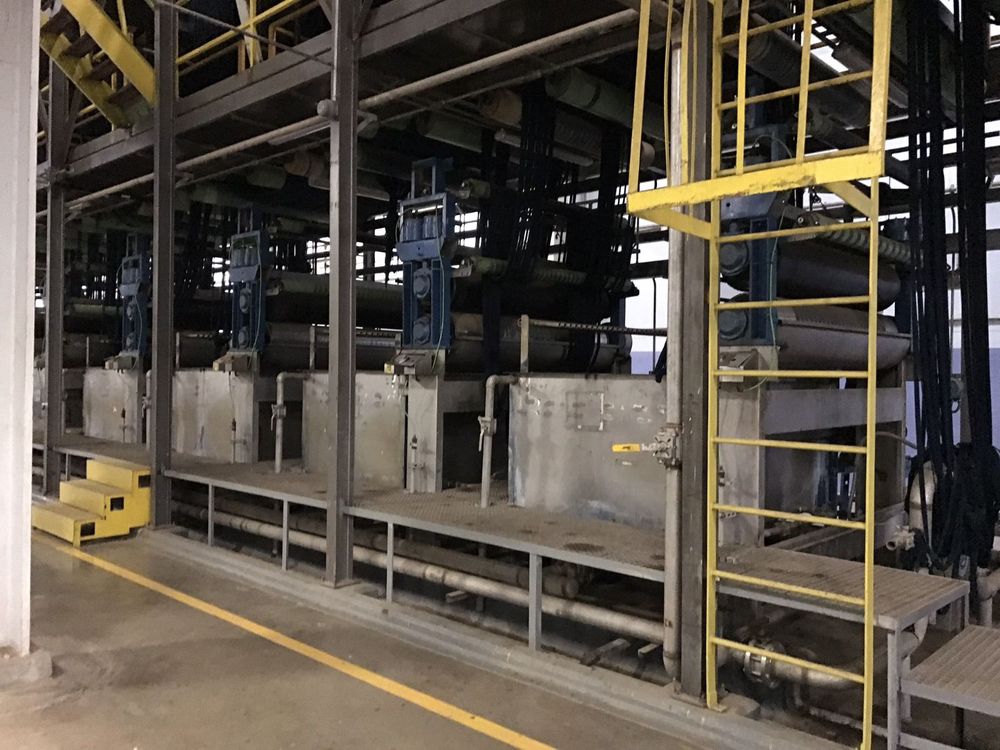

8 Morrison Indigo Dye Boxes (each with 10-ton Nip Rollers on exit)
Each equipped with 3 sets of Time Oxidation “Skying” Roller Systems
4 Morrison Washing / Rinse Boxes (each with 10-ton Nip Rollers on exit)

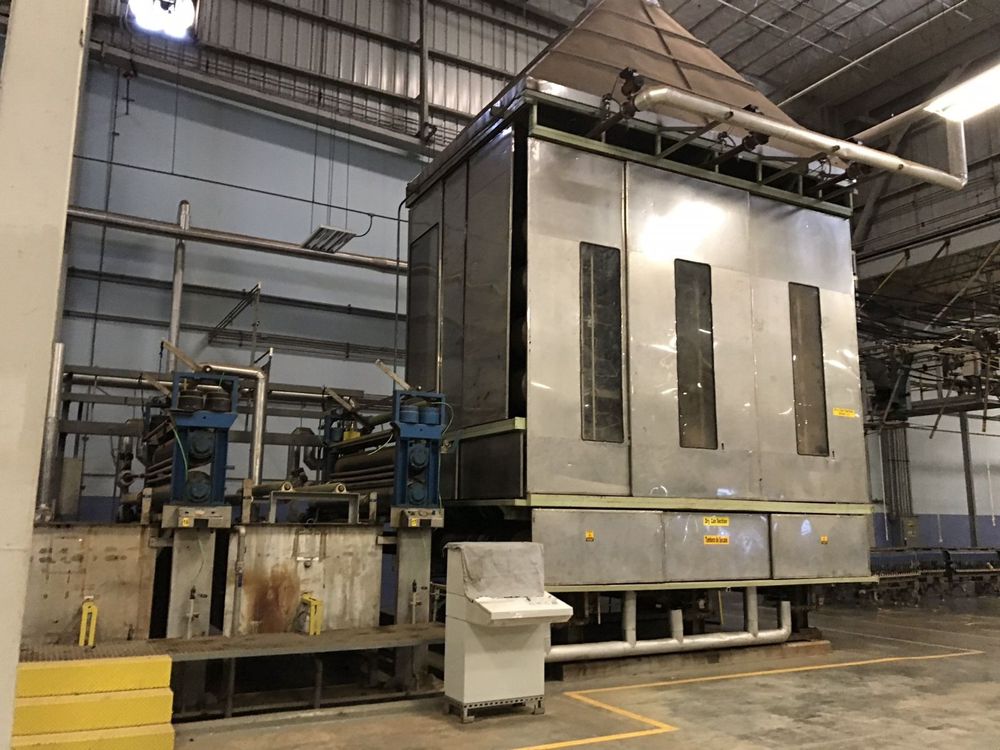

Stainless-Steel Drying Cans in Enclosed Cabinet
3 stacks of 14 offset Drying Cans (Total: 42 Cans)
Exit to Coiler & Rope Collection Cans
6 Ceiling-Mounted Coiler Units (4 ropes per coiler)
Completely Rebuilt 2007 – Not Used Since 2010
