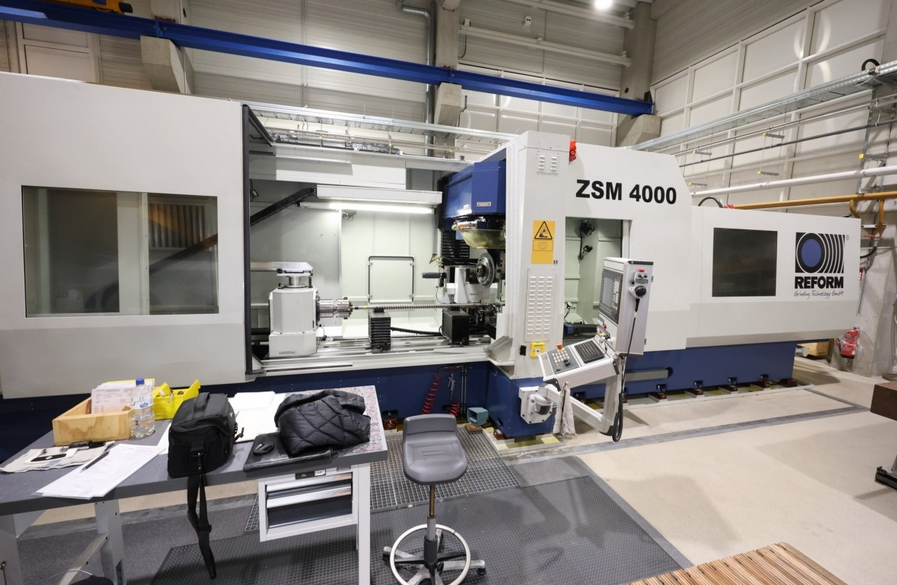

Reform ZSM 4000 GS

Thread diameter 20–80 mm
Grinding length 3500 mm
Threading length min./max. 50/3500 mm
Centre height 400 mm
Workpiece length max. 4000 mm
Control Siemens 840-Dsl
Feed speed U-axis 0–2500 mm/min
Feed speed W-axis 0–2500 mm/min
Feed speed B-axis 100 1/min
Total power requirement 45 kW
Machine weight approx. 24 t
Machine dimensions approx. 10.7 × 4.6 × 2.9 m
Grinding spindle capacity 14 kW
Grinding wheel diameter range 350–500 mm
Cutting speed range 20–75 m/s
Grinding wheel diameter new 500 mm
Grinding wheel diameter worn 350 mm
Grinding wheel bore diameter 203.2 mm
Shaped diamond roll diameter 121.3 mm
Shaped diamond roll radius 0.5 mm
Driver flange for workpiece diameter 15–70 mm
Driver for 10–32 mm drive diameter
Driver for 31–60 mm drive diameter
Driver for 60–105 mm drive diameter
