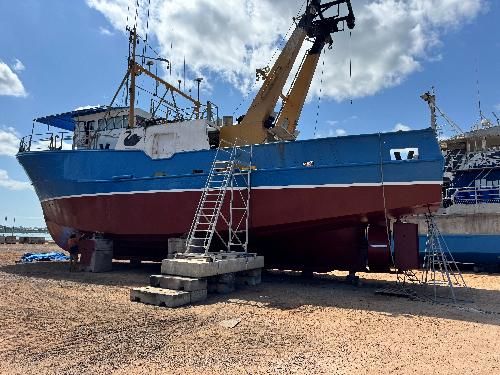

Refrigerated Prawn Trawler 5616 Steel hull

Refrigerated prawn trawler
LOA: 23.86 m
Beam: 6.74 m
Draft: 3.2 m
Construction: Steel hull
Main engine: Mitsubishi Heavy Industries 450 kW turbocharged diesel
Auxiliary engine: Caterpillar Inc. 190 hp driving 180 kVA alternator
Gearbox: Twin Disc hydraulic reverse/reduction gearbox
Fuel capacity: 63,980 L
Water capacity: 9,132 L
Max speed: 10.5 knots
Service speed: 4 knots
Hold capacity: 25 T freezer hold (~2300 cartons)
Snap freezer capacity: 2.5 T with 9 shelf forward unit
Brine tank capacity: 1,920 kg
Accommodation: 7 berths across 4 cabins
Winches: Port & starboard trawl winches 5 T capacity
Cod end winches: 3 T capacity
Hydraulic try winch installed
Electric working capstans installed
Twin anchors with hydraulic windlass and warping drums
Mooring equipment for commercial trawling
Navigation radio systems: VHF, HF SSB, satellite phone, EPIRB
Radar system: Furuno Electric Co. radar unit
GPS navigation: Furuno Electric Co. GPS system
Depth sounder: Furuno Electric Co. colour depth sounder
Auto pilot: Furuno Electric Co. autopilot system
Onboard navigation computer with TMQ C-Plot system
Double rigged trawling configuration
Single screw propulsion system
Designed for Northern Prawn Fishery operations
Hull and shaft survey renewed in 2025
Full sandblast and repaint completed
Operating depth capability for scampi fishery up to 550 m
