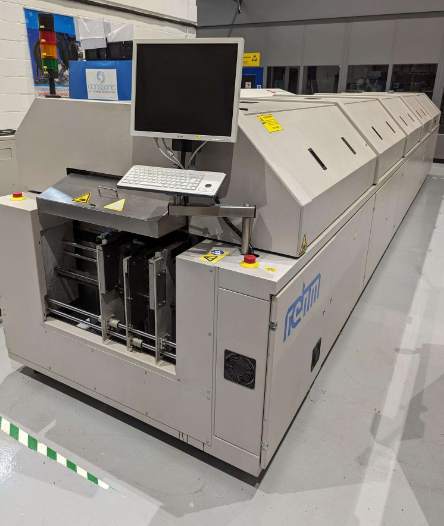

Rehm VXS Nitro 4550 (Type 945)

Direction: Left to Right
Transfer height: 900mm (+/- 75mm)

Process Chamber Heating:
Length: 4550mm
Qty of preheating zones: 9
Length of preheating zone: 3150mm
Qty of peak zone: 4
Length of peak zone: 1400mm

Cooling Zone:
Length: 1750mm
Qty of cooling zone: 5
Cooling Water Flow: between 10-20l/min (according to temperature)
Operating Pressure: min 2 bar – max 5 bar
Nitrogen Supply Pressure: min 7 bar – max 10 bar
Voltage: 400 VAC, 3 Phase, 50Hz
Dimension (in mm): 7790 (L) x 1466 (W) x 1439 (H)
Weight: 5100Kg

The system is a fully automated, convection-only Reflow soldering system which can
be operated with air or nitrogen atmosphere. The PCB’s are advanced through
various heat zones which are set to different temperatures for preheating,
soldering and cool-down. The system is Equipped with a graphic user interface and
can be operated with the included keyboard and trackball, or optionally with
a touch screen.
