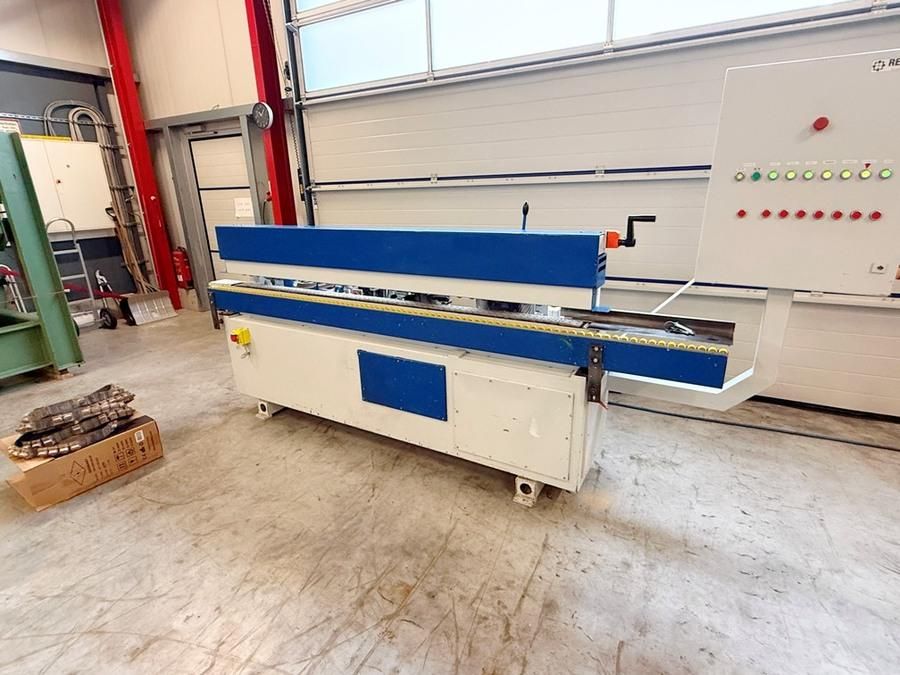

Rehnen KBA

Used Profile grinding machine / automatic edge processing machine for grinding edges, milling profiles, and grinding profiles in a continuous process.
The machine also has a corner copying milling machine.
The materials to be processed are solid wood, chipboard, and MDF.

Material thickness 10 - 65 mm
Material length min. 50 mm
Material width min. 60 mm
Feed speed 8 m/min
Total power 6.5 kW

Equipment:
- Oscillating edge sanding device (sanding belt dimensions 150 x 1500 mm / 1400 and 2800 rpm / oscillation stroke 30 mm / contact roller and sanding shoe)
- Upper milling unit
- Lower milling unit
- Corner copying milling machine / corner rounding milling machine
- Bottom profile sanding device
- Top profile sanding device
- Feed chain conveyor with top pressure

Incl. technical documentation
Incl. 6 used profile belts (must be refitted)
Transport dimensions approx. 3700 x 1000 x 1700 mm LWH
Weight approx. 800 kg
