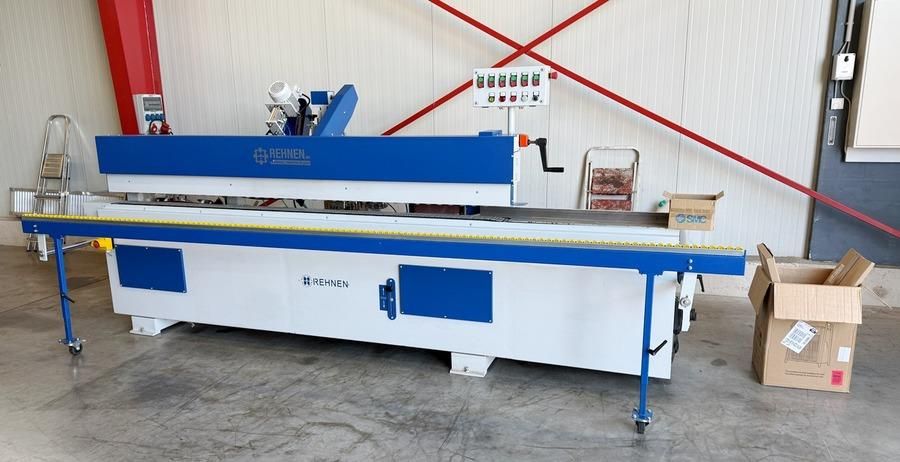

Rehnen KBA

Profile sanding machine / automatic edge processing machine
Low operating hours
Profile sanding machine / automatic edge processing machine for sanding edges,
routing profiles and sanding profiles in through-feed operation

Materials to be processed: solid wood, chipboard and MDF
Fields of application: stair construction, furniture production, shopfitting, interior finishing, etc.

Material thickness up to approx. 90 mm, centrally adjustable by handwheel
Variable feed speed up to 6 m/min
Total power 7.3 kW
Pneumatically controlled and tracing profile sanding shoes with standard sanding belts
Longer belt life due to long sanding belts and pneumatically height-adjustable oscillation
High material removal thanks to calibrating roller

- Continuously adjustable oscillating sanding unit (between 30 - 130 mm) / sanding
and fine sanding via contact roller and sanding shoe / sanding belt size edge 2000 x 150 mm
- 2 routing units with profile cutters 50 x 10 x 16 mm, Z4 / routing of radii, profiles
and chamfers on top and bottom at 12000 rpm / controlled via frequency inverter
- 2 profile sanding units for profile sanding with endless sanding belts via application-controlled,
air-cooled steel profile sanding shoe / sanding belt size profile 30 x 1960 mm
- Extendable roller conveyor at the front
- Extraction connection diameter 160 mm
- Workpiece feed via chain plate conveyor

Transport dimensions approx. 4000 x 1200 x 1750 mm LWH
Weight approx. 1000 kg
