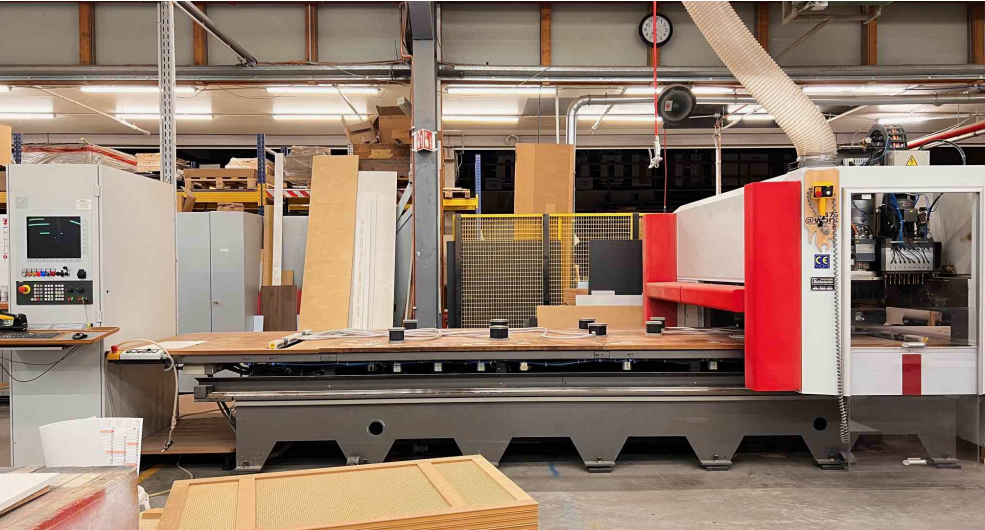

Reichenbacher Vision 1 MNR 1476

Used machine
Retrofitted 2018
Machine body as a single, compact honeycomb welded construction.

X-axis 3,740 mm longitudinal travel
Y-axis 1,630 mm transverse travel
Z-axis 340 mm vertical travel
C-axis ±360° rotary travel

Infinitely variable programmable working speed up to max. 60 m/min in the X/Y plane.
Rapid traverse up to max. 85 m/min. Vertical travel up to max. 20 m/min. Rotary travel up to max. 90°/s.
Milling spindle 10.0 kW (repaired in 2025)
Tool holder: Steep taper SK 40
Tool changer: Disc changer for 12 tools.
Drilling head: 21 drilling spindles
Central lubrication
250 mm dust extraction
Vacuum table: The fixed machine table has a smooth, 30 mm thick solid wood top.

Table size: 3,800 x 1,150 mm
Working area: 3,740 x 1,430 mm
Table divided into 2x1 clamping bays for alternating loading.

Safety system: Bumper
Footprint: approx. 7,300 x 3,000 mm
Retrofit 2018: New control cabinet with Siemens Solution Line, DriveQlic drive package with new servo motors and cables.
Software for Sinumerik 840Dsl including Windows 7 operating system.
Stops: All 11 stops were replaced. An additional stop bay was installed.
Valve manifold was upgraded to a Festo Profibus valve manifold.
Bumpers: All bumpers were replaced.
