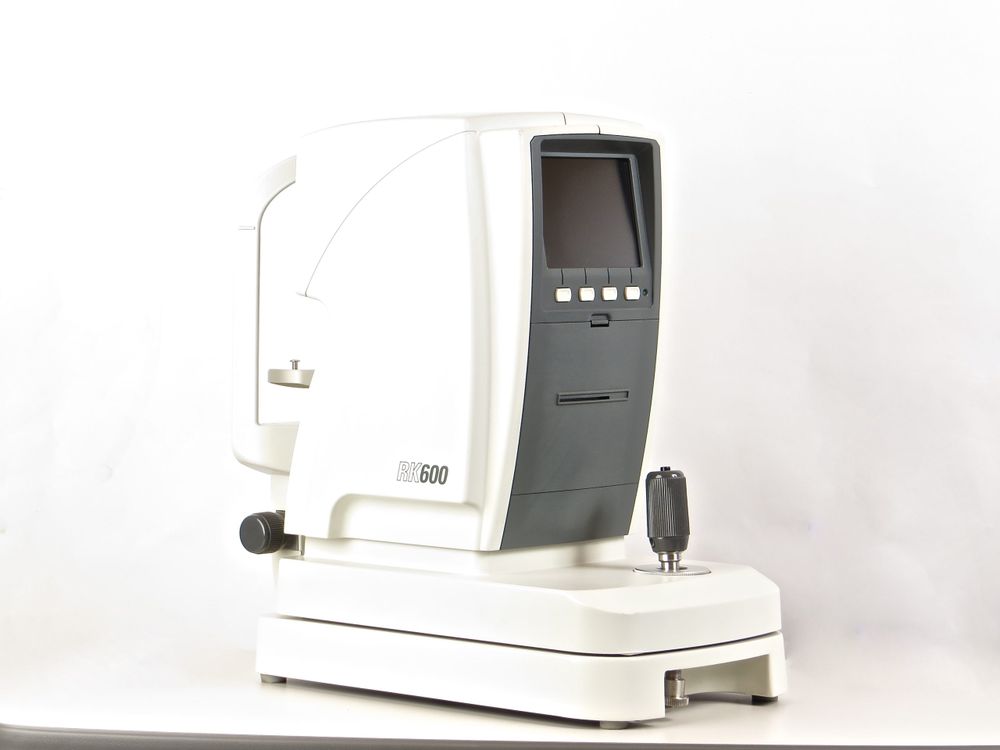

Reichert RK600 Auto Refractor Keratometer

Contact lens Measurement
The Base Curve of a contact lens can be measured with the RK600 using the contact lens holder.

Pupil Distance Measurement
When left and right eye measurements are taken, pupil distance is
automatically computed, displayed, and can be included on the results printout.

LCD Color Monitor and Menu Screen Settings
The LCD color monitor provides a clear display of icons for easy identification
and selection of the measurement you wish to perform.
Menu screens are easy to read and measurement data can be viewed on the Monitor without printing.

Contact Lens Measurement
Pupil distance measurement
LCD Color Monitor and Menu Screen Settings
Wide measurement range
Fast and Easy Measurement
Kerato-Peripheral Measurement
2.3 mm Minimum Pupil Diameter and 3-Step Target Light Adjustment
IOL Measurement

SPECS:
Refractive Measuring Range:
Sph: -25 to +25D (0.12/0.25D step)
Cyl: 0 to ±10D (0.12/0.25D step)
Axis: 1-180° (1° step)

Keratometric Measuring Range:
Radius of Corneal Curvature 5.0~10 mm (0.01 mm step)
Corneal Refraction: – 33.75~67.5D
Cyl – 0 to ±9D
Axis – 1~180° (1° step)
Corneal Periphery -Measurement area Ø7.5 mm (when radius of curvature is 8 mm)
Vertex Distance: 0, 10, 12, 13.5, 15 mm
Minimum Pupil Diameter: 2.3 mm
PD Measurement Measurement Range: 85 mm (1 mm step)
Printer: Thermal line printer with automatic cutter (paper width 57 mm)
Display: 5.6 inch Color LCD
Adjustment Range for Instrument:
Back/Forth ±17 mm
Right/Left ±43 mm
Up/Down ±17 mm
Vertical Adjustment Range for Chin Rest: ±30 mm
