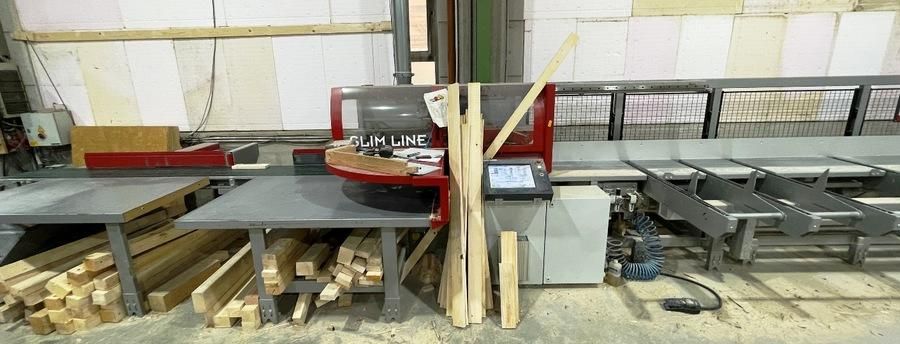

Reinhardt SlimLine 170

CNC cross-cut system / cross-cut saw
Used expected to be available from 01.09.2025
Automatic cutting of strips, boards and squared timber for individual and series production

The operator places the workpiece independently of the machine cycle
The pawls and the infinitely adjustable end stop serve as alignment aids during placement.
The unit can hold up to 2 workpieces (workpiece packages) while a 3rd workpiece (workpiece package) is being processed.
The unit feeds the workpieces (workpiece packages) to the cross-cut saw fully automatically.
This results in continuous feeding and an increase in performance of up to 30% (practical value).
The infeed is equipped with a stable 3/4" chain. All good pieces are pushed crosswise onto a storage table immediately after cutting.
Different lengths can be easily recognized, as all cuts are flush on one side.

Working direction from right to left
Cutting width 20 - 350 mm with a cutting height of 110 mm
Cutting width 20 - 400 mm with a cutting height of 170 mm
Lifting module 170
Wood thickness 20 - 170 mm
Saw blade 600 x 30 x 4 mm Z72
Speed 2800 rpm
Cutting time per stroke 0.2 - 3 seconds
Main motor 11 kW
Feeding with 2 buffer places, nominal length 5000 mm, 5 chain strands
Buffer place for 2 workpieces or workpiece packages (1 automatic latch). Buffer space for 2 workpieces or workpiece stacks (1 automatic latch row)
Minimum workpiece blank length 600 mm (shorter workpieces must be placed directly on the machine infeed table)
1 height-adjustable support roller
1 infeed table, nominal length 5000 mm
1 lifting & lowering pusher unit
1 pusher on saw blade L1500
Twincat operating system
A maximum of 300 different lengths with quantities of up to 9999 can be processed
Automatic balancing of operating data, Remote diagnostics possible via the Internet
Working area secured by safety fence and safety light curtains
Automatic cut release, pneumatic saw stroke and infinitely variable saw blade feed
CE conformity in accordance with Machinery Directive 2006/42/EC
