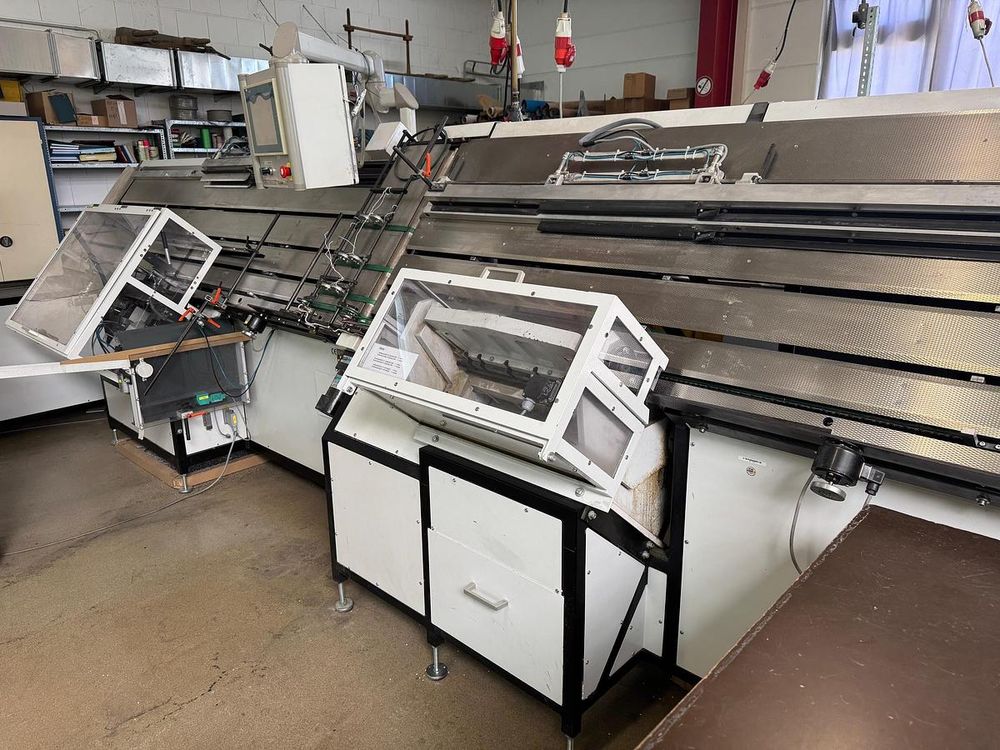

Renz ASM 500 , ABL 500

Punching Line, Automatic Binding Line
KAS Calendar hang feeder (works for a width up to 29 cm)
Cover sheet turner DBW

Technical Data:
Punching tools square and round including thump hole
Closing tools for ¼, 5/16, 3/8, 7/16, 1/2, 5/8
Punching cycle up to 2200 /h [ASM 500
Binding cycle
up to 2100 /h with A4 book
up to 1900 /h with A4 calendar
up to 1750 /h with 50 cm calendar
Compressed air 7 bar, 350 NL net per minute
Power supply: 5 kW, 3 x 400/230 V ABL 500 [1] 3 kW, 3 x 400/230 V

Dimensions :
Inline 500 5.8 m x 1.9 m with DBW and conveyor belt 5.8 m x 2.3 m
ABL 500 3.3 m x 1.9 m with DBW and conveyor belt 3.3 m x 2.3 m

Fully automatic in-line operation for books and calendars up to a thickness of 4 mm.
Work flow: feeding the paper onto the machine - punching - binding - turning cover page [DBW] - output
Multiple feeding of manually separated punch layers for books and calendars with a thickness of 4 mm.
Work flow: manual separation of layers - feeding - punching - assembling - binding - turning cover page DBW – output
Operation with uncoupled ABL 500 - automatic binding line. Work flow: feeding punched paper - binding - turning cover page DBW - output
The ASM 500 punching unit can be added to the stand-alone ABL 500 at any time.
