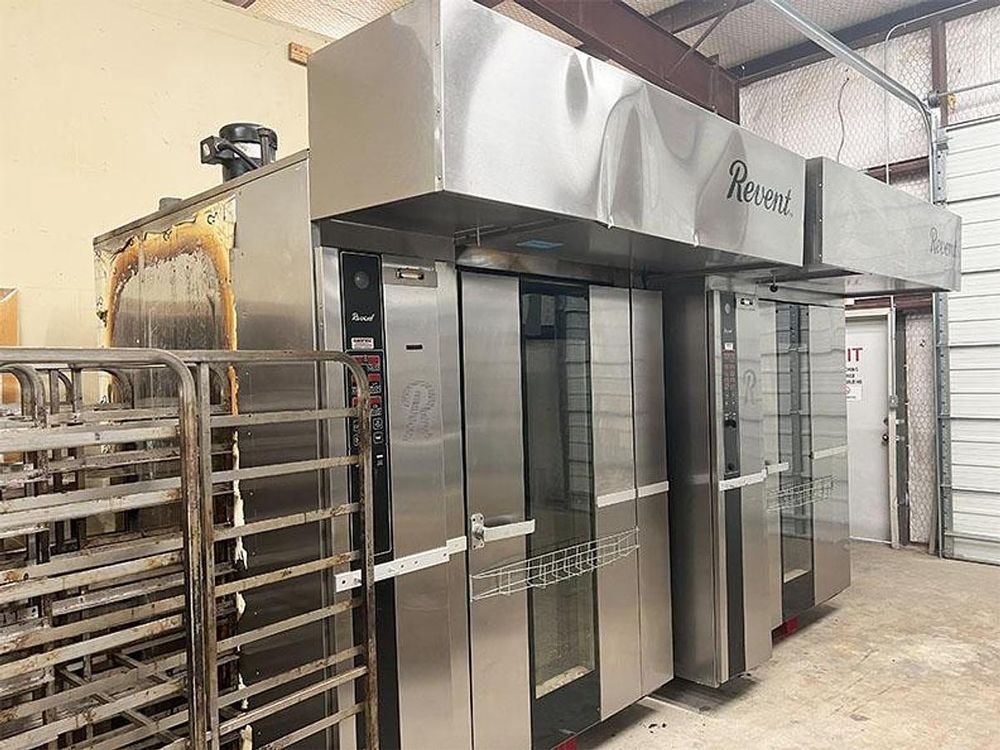

Revent 724 Double Rack Oven Gas

Stainless Steel Interior and Exterior,
Type "A" Rack Carrier, Nat Gas Fired,
343,000 BTU, Voltage: 208-240 / 3 Ph+N

Specifications:
Maximum Heat Capacity 343,000 BTU/H
Temperature range 50˚-300˚C / 122 - 575 F
Product net weight 1665 kg* / 3700 lbs
Minimum Door Opening 875 x 1760 mm / 34 in x 69 in
(standard 3-section + steam box delivery)
Minimum intake opening 1760 x 2510 mm / 69 in x 98 in
(optional one-piece shipment)
Minimum section tilt up height: 2700 mm / 106.5 in (without motor)
Max load for rack lift and platform 400 kg / 880 lbs
Steam Generation 8,5 l/ 20 sec at 250˚C
Tubular electrical heaters Stainless steel
Manufacturing material Stainless steel
Steam and damper control Automatic
Door Double glass

Utility requirements:
Electrical
Standard 3PH208-220V+N 16A
Optional 3PH440-480V 8A
+1PH/120V/60 Hz 15A

Contact factory for other power options
Gas
Natural Gas 343,000 btuh @ 7-14” w.c and ¾” drop to ½” NPT
Liquid propane
Water and Drain
Water Supply ½”NPT ø 60-65 PSI cold

Drain 1” NPT, optional connection to rear
Water quality pH 7-8.5
Hardness 4-7 gr/gals.
Acceptable range for chloride
concentration 0-50 ppm

Ventilation
Combustion flue
Directly from top of oven connect 8” tee and install barometric damper (included with oven).
Above this damper install draft inducer
(included with oven) into 8 “single wall combustion exhaust pipe.
Run 8” type “B” vent from top of draft inducer and continue on through the roof.
