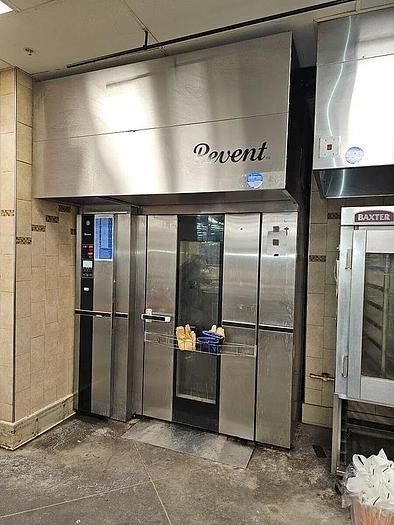

Revent 724E Double Rack Oven

Voltage: 240-440 v / 3 Ph

Specifications:
Maximum Heat Capacity 74.8 kW
Temperature range 50˚-300˚C / 122 - 575 F
Product net weight 1665 kg* / 3700 lbs
Minimum Door Opening 875 x 1760 mm / 34 in x 69 in
(standard 3-section + steam box delivery)
Minimum intake opening 1760 x 2510 mm / 69 in x 98 in
(optional one-piece shipment)
Minimum section tilt up height: 2700 mm / 106.5 in (without motor)
Max load for rack lift and platform 400 kg / 880 lbs
Steam Generation 8,5 l/ 20 sec at 250˚C
Tubular electrical heaters Stainless steel
Manufacturing material Stainless steel
Steam and damper control Automatic
Door Double glass
