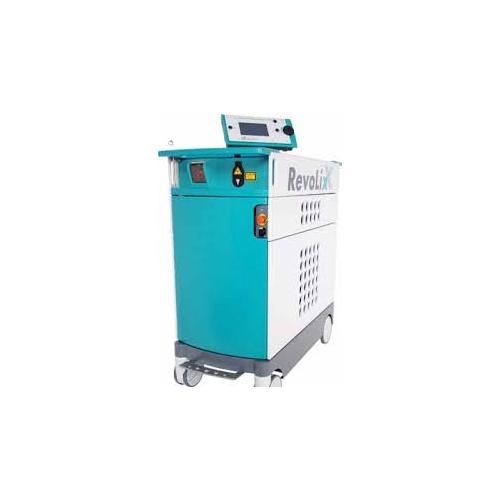

Revolix Duo Medical Laser

Laser, Ho:YAG, Surgical. Good visual and working condition.
Last service September 2024.


Features
Dual laser technology in a single device
Single fibre port for both modes
Reusable front fibres for tissue surgery
Effective fragmentation of all types of stones
High precision and low necrosis zone
Compatible with rigid and flexible instruments
Enhanced safety and compliance with medical standards
Intuitive use and simplified maintenance

Technical Details
Soft tissue laser: continuous wave DPSS laser
Wavelength: 2.0 microns
Adjustable power: 5 to 70 W
Emission mode: continuous or pulsed (50 ms to 1000 ms)
Laser for calculi: pulsed Holmium-YAG laser
Wavelength: 2.1 microns
Max. power: 20 W
Energy per pulse: 0.5 to 2.6 J
Repetition frequency: 5 to 15 Hz
Peak power: 6 kW
Optical fibre: flexible silica fibres, single port for both lasers
Aiming beam: 635 nm, bright red, 1 mW, adjustable
Power supply: 230 VAC, 50/60 Hz, 3.6 kVA
Cooling: integrated
Weight: 165 kg
Dimensions: H 950 x W 890 x D 420 mm (without screen)
Safety standards: IEC 60601, CE (pending)

Compatible Accessories
Front and side laser fibres (reusable and disposable)
Single and double Kix foot pedals for foot control
Fibre reconditioning tools
FlexGuard insertion systems for ureteroscopes
Neutral-coloured laser safety goggles
Mobile carts for inter-room transport
