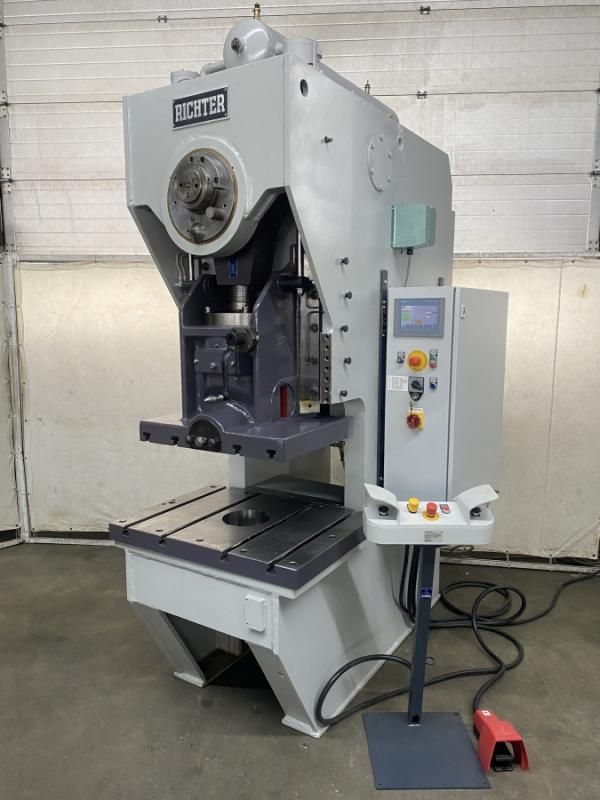

Richter PEKRS 80 80 ton

(overhaul 2024)
Press force 80 ton
Throat depth 350mm
Table size 900 x 650mm
Die opening in table diameter 200mm
Ram surface 700 x 500mm
Strokes per minute 70
Stroke adjustment 6–100mm
Ram adjustment 85mm
Maximum installation height 400mm
Clamping pin bore diameter 50mm
Table height above floor 810mm
Motor power 8kW
Electrical connection 400V 50Hz
Space required L x W x H 1800 x 1250 x 2830mm
Weight 5.7 ton

FEATURES
Pneumatic clutch-brake combination ORTLINGHAUS
Press safety valve HERION XSz 32
Pneumatic ram compensation cylinders
Overload protection with breaking plate in ram
Central grease lubrication with hand pump
Technically overhauled
New electrical system according to latest safety regulations
Control retrofit 05/2024
Suitable for hand-loading operations
Control with clear-text error messages and diagnostic display
New electrical cabinet
System based on SIEMENS with SPS S7-1200 PROFIsafe and 7" TFT touch display
Two-hand control panel with emergency stop and engagement lock
Electrical foot switch
Cam switchgear with run monitoring
Stroke release via press safety valve HERION XSz 32 with pneumatic pressure scale
Machine rewired
Updated operating manual
Six operating modes (setup, single stroke two-hand, single stroke foot, continuous foot, automatic continuous, reverse run)
