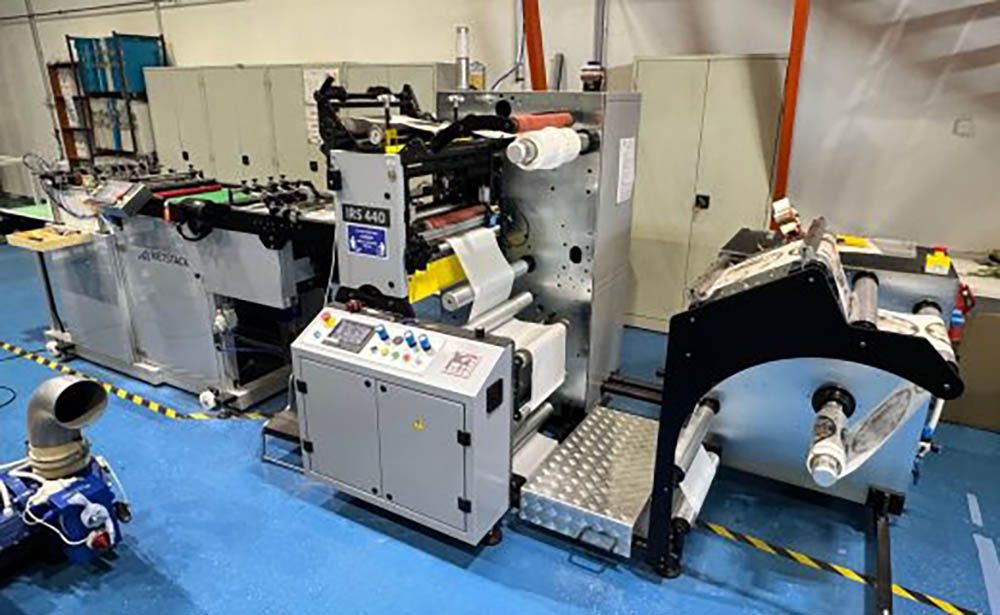

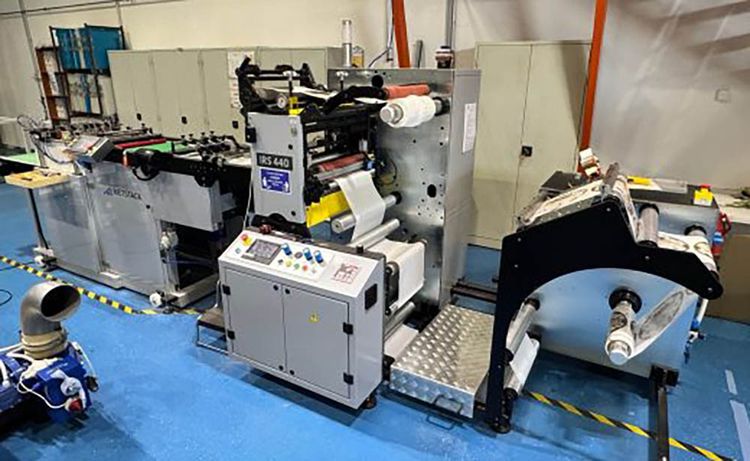

Rietstack IRS 430

16.5-inch used die cutter with non-stop stacker
Maximum mechanical speed of 200m/min
Electric power 3x400V 50 Hz (5P-32A)
Compressed air 6 bar
Module unwind unit (equipped with pneumatic unwind spindle – 76mm
Maximum unwind diameter – 800mm
Micro-processor control system
Electronic counter (labels/meters)
Splice table with 2 pneumatic clamps
Precise adjustment of rewind and unwind web tension
Electronic correction of web tension on unwind
Flag detector
Automatic stop at roll end, de-curl-bar-unit)
Web guide BST
Splice table with 2 pneumatic clamps
Die cutting station standard (including matrix rewinder
Maximum working width of magnetic cylinder – 420mm
Magnetic cylinder repeat size – 96T-220T
Magnetic cylinder one included – 96T
Die-cutting unit driven by servo drive, nip roller servo driven, matrix rewind spindle is driven by servo
Matrix rewind spindle-diameter – 76mm
Maximum rewind diameter-matrix – 600mm
Matrix pneumatic pressure roller
Hydraulic pressure read out 2 clocks
Modified pressure bridge allowing to lift the magnetic die cylinder without hoist to mount the magnetic die plate
Matrix pneumatic pressure roller)
Nonstop stacker running max. 4 streams
Delivery conveyor servo driven with vacuum belts and vacuum pump
Simco antistatic bar: 3 pcs
Max. width 420 mm, max. stack length 630 mm
Max. stack height 120 mm
Max. stack speed 80 m/min
Stack height control by counting the sheets in the stack
Speed dependable on material
Stacks delivery by pushout system
Stacker running full automatic continuous running mode
Min size for ready stacks production is 50x50mm
Smaller labels can be collected at the end of the conveyor, control panels with HMI touch screen panels
