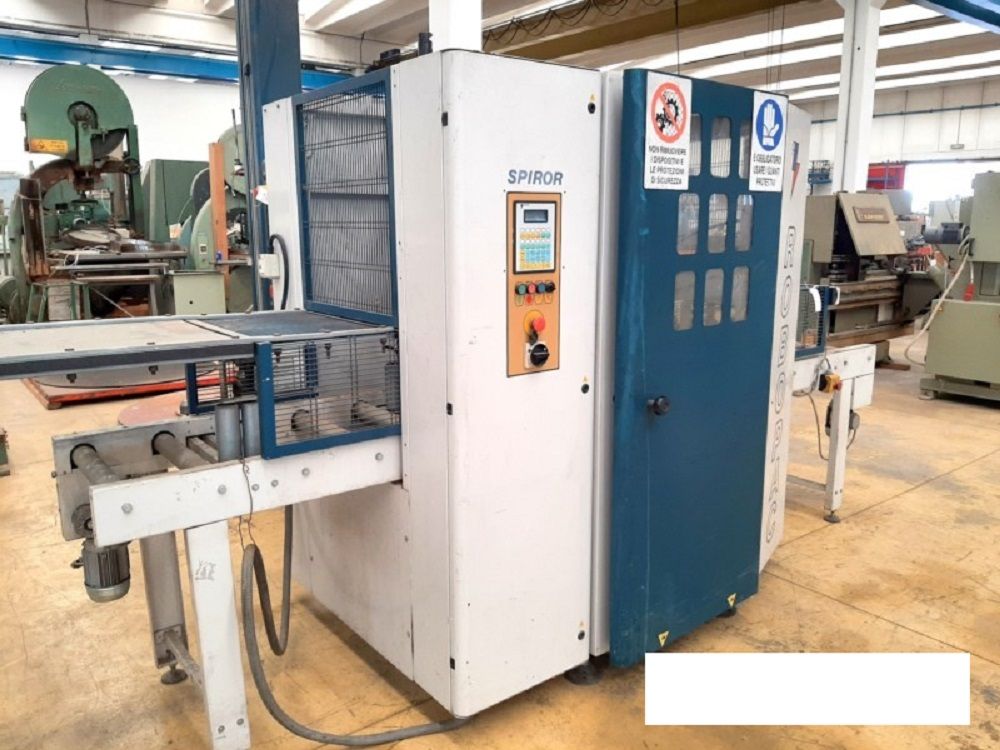

Robopac SPIROR 400 HP Automatic horizontal wrapping machine

Automatic horizontal wrapping machine suitable for wrapping different types of products:
strips, shelves, and other items in the furniture , construction, mechanical industry - CE Standard

Composition:
Spool rotation unit : Rotor inner diameter mm 400
Operated by three-phase motor Kw 1,8 (Hp 2,5)
Max working spee of rotor 145 rpm
Control and adjustment of rotor acceleration and deceleration in phase at cycle start and end by frequency changer
Spool carriage: unwinding roller with adjustable braking capacity that ensures constant wrapping tension as spool diameter changes
Product infeed unit :
Roller diameter mm 60
Total width mm 600
Working width mm 380
Max Speed 40 mt/min
Min speed 14 mt/min

Pneumatically operated rubber coated pressure rollers
Roller diameter mm 60
Total width mm 420
Working width mm 380
Manually operated infeed and outfeed vertical pressure unit
Roller diameter mm 60 - Roller lenght mm 285
Film stopping and cutting devices
Max spool diameter mm 300
Width mm 250/250
Film thickness (microns) 17-50
Spool core diameter mm 76
Control panel with touch screen
Electric panel
Total installed power Kw 2,5
Working pressure 6-7 bar
Infeed idle rollers mm 2000
Weight kg 800
