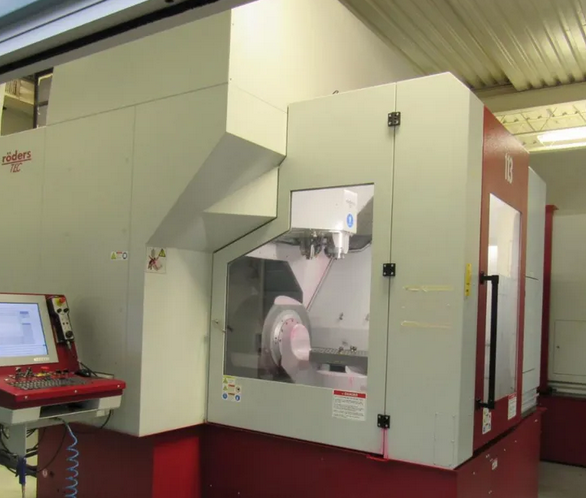

Roeders RXU1001DSHZ2 5 Axis

X-Axis travel: 33.66"
Y-Axis travel: 27.55"
Z-Axis travel: 19.68"
W-Axis travel: 10"
C-Axis travel: 27.55" continuous
Control: Roeders HMC RMS6
Spindle #1: Fischer HSK50, 36,000 RPM, 20 hp, Vector-Controlled, Max diameter 0.79", HSK-E50 interface
Spindle #2: Levicron RSA60 HSK25, 0-60,000 RPM, Vector-Controlled, Runout < 0.1 μm, Torque 0.5 Nm, HSK-E25 interface
Tool changer #1: 30 pockets
Tool changer #2: 30 pockets
Automatic tool measuring: 3D Touching Probe Renishaw OMP400
Second laser for tool measuring
Swivel door tool changer
ATC capacity: 60
Table size: 15.75" x 15.75"
High Accuracy Package
Autocalibration 5
Tempering of working area
Surface optimizer RMS6/SO
Spindle compensation with live spindle growth monitoring
Grinding spindle 600/RXU Z2 RSA60
NC simulation RMSEdit/Sim
UPS for control PC
Lift up Z-axis
Remote control via Teamviewer
Atomixed mist coolant (MQL)
Chip removal bin
HSK E50 & E25 tooling
33 minutes NC milling
Cut hours: 602 hr
