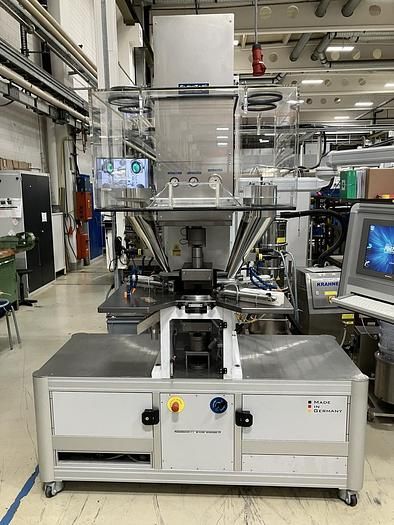

Röltgen Flexitab XXL Multi-Layer Tablet Press
EUROPE (Western and Northern)
• Single-stroke tablet press for pharmaceutical research and development, formulation studies, and scale-up processes
• Powder-coated steel tablet press frame
• 3 layers, ready for 4th layer
• Max. tray diameter 60 mm
• Adapter for EU-B and EU-D tools
• Pressing force 150 kN
• Ejection force 12 kN
• Force measurement
• Displacement measurement
• DAQ software for force and displacement
• Core rod device
• Larger funnel at station 1
• Dust protection for the tablet ejector
• Two additional suction nozzles
• Additional suction on each filling shoe
• Transparent sealing safety cover on the die table
• Heating device for the die
• External lubrication (standard)
• Connections for online support
• Software in English and German
• Four additional 230 V sockets on the rear
• Siemens S7-300 PLC
• Proface Industrial Panel PC HMI (PFXPP171CA45K10N00)
• 230 V/50 Hz drive
