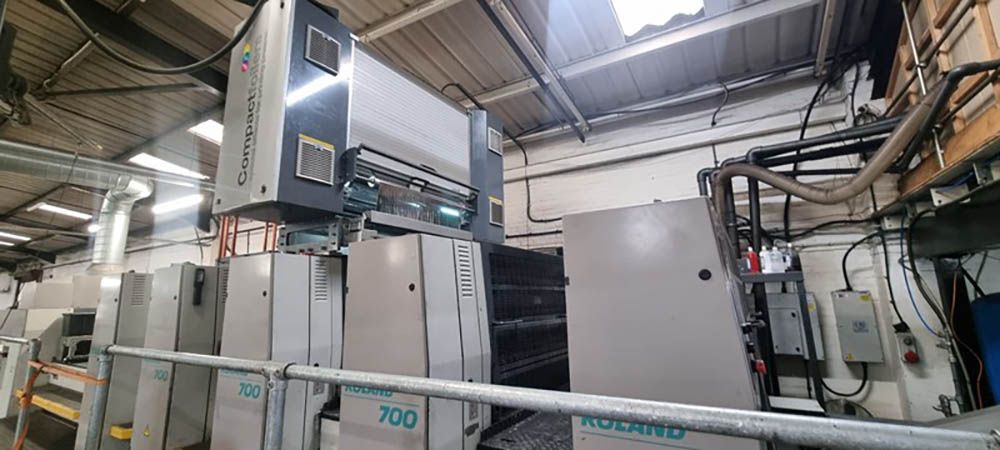

Roland 704 3B LX 1020 mm

Press can be used with or without the Cold Foiling system
Cold Foiling system by Compact Foilers Installed in 2016/2017
Maximum Foil width: 1020 mm
Minimum Foil width: 80 mm
Will run 80 mm 6 rolls across
Foil roll lengths up to 10,000 m on a 3 inch core
Core on infeed 3 inches
Core on outfeed 3 inches

Speed: 8,000 Sheets per hour on a full out sheet subject to stock
Also has Cast and Cure Hologram facility
Touch Screen Computer Controls
Includes Hoist for lifting foil rolls

Configuration:
Print unit one – Not used
Print Unit two – Applies adhesive based inks
Print Unit three – Converted to run Compact Foilers in line cold foiling system
Interdeck UV Lamps between Units and 3 and 4
Print Unit Four – not used
Tower Coater
Extended Delivery with IST UV Drying from 2005
Steel Plate in Feeder
Non stop feeder
Suction feed board
RCI
Rolandmatic
Technotrans Chiller
Graphix Powder spray unit
Tower Coater
Watson Marlowe Coating Pump
Steel plate delivery
