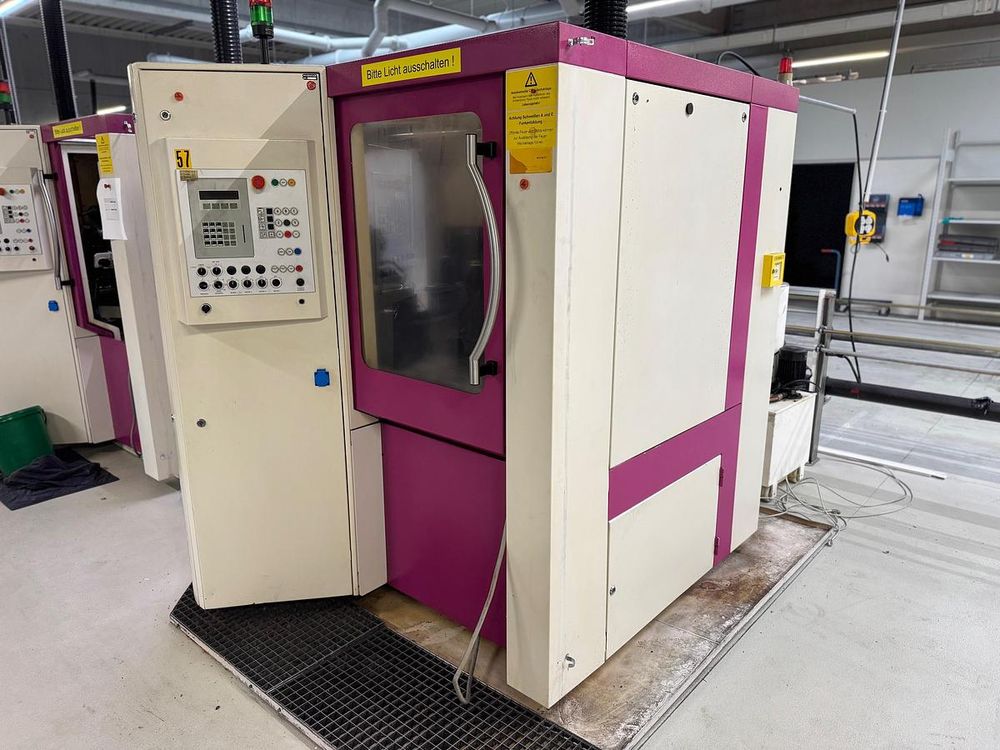

Rollomatic CNC 2000 XD

Ref : 2728151-3-GO

Condition : Used

Manufacturer : Rollomatic

Model : CNC 2000 XD

Year(s) : 2000

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

ROLLOMATIC CNC 2000 XD
2000

CNC control ROLLOMATIC
Grinding diameter 0.1–2.0 mm
Collet type B 8
Cutting length 0–15 mm
Helix angle 24–45°
Overall length 30–50 mm
Z-axis stroke 67 mm
Y-axis stroke 35 mm
Axis A 63°
Axis B 360°
Axis C 360°
Three axes simultaneous plus two robot axes
Robot loading/unloading station
Shaft diameter 0.5–3.175 mm
Direct-drive spindle 70 mm diameter
Spindle power 0.30 kW
Speed converter 2000–6000 rpm
Groove grinding wheel diameter 150 mm
Groove grinding wheel diameter 100 mm
Installation dimensions (L x W x H) 2300 x 2000 x 2200 mm
Machine weight 2000 kg
