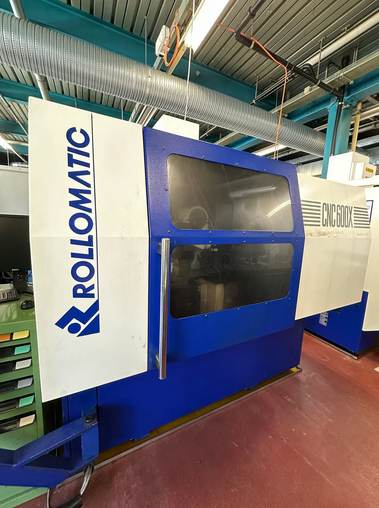

Rollomatic CNC 600 X
Ref :
2754550-3-MT
Condition :
Used
Manufacturer :
Rollomatic
Model :
CNC 600 X
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Cross Axis Travel (W axis): 600 mm
Longitudinal Axis Travel (U axis): 600 mm
Cross Travel: 230 mm
Longitudinal Travel: 180 mm
Vertical Travel: 150 mm
A Axis: -15° / +90°
B Axis Swivelling Range: -130° / +45°
C Axis: Not specified
Control: FANUC 16i-M
Max Grinding Length: 150 mm
Grinding Diameter: 0.1 – 12.7 mm
Max Grinding Wheel Diameter: 150 mm
Spindle Taper: W20
Grinding Spindle Speeds: Stepless 2,000 – 7,200 rpm
Grinding Spindle Motor: 14.5 kW
Voltage: 3x 380 V, 50 Hz
Machine Weight: 3,500 kg
Overall Dimensions: L2060 × W2032 × H1880 mm
Coolant System
Adjustable Projector
