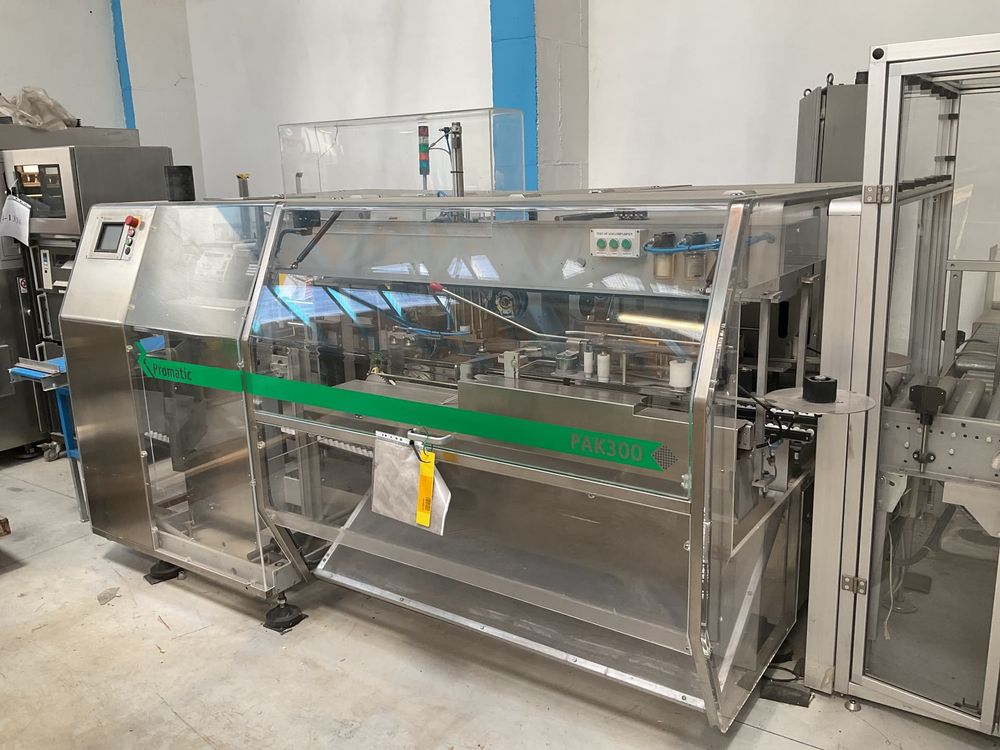

Promatic, Romaco PAK 300, Cartoning & Case Packing Machine

Weight 1700 kg
Extra information F2 PO6 zone A

Extra information
Packer Romaco Promatic PAK 300PAK 300 is designed for packing cartons and/or bundles
into RSC cases and features: a high- capacity case magazine fitted
with automatic lifting of the case to working height, forced case erection by means
of a double arm fitted with suction cups and Venturi vacuum unit,
closing of the flaps at the base of the case before the cartons are inserted.
The case packer’s operating processes and work areas such as stacking from bottom to top,
transfer and subsequent insertion of the cartons into the case,
are kept separate and permit checking of critical operations, reducing machine down- time to a minimum.
The Romaco Promatic PAK 130 is the ideal solution for serialization and data aggregation.
Highlights:Reduced downtime, cleaning and maintenance operationsClear view of product flow,
immediate safe access to all functions and operations, high efficiency levelGMP design
Ergonomic design
Machines error diagnosis and troubleshooting functions enhance operation of the machine
Quick and easy changeover
Data:Mechanical speed: 8
Power consumption, in kW: 4 Air consumption, in Nl/min: 250 Weight approx., in kg: 1,800 Length,
in mm: 4,350 Depth, in mm: 1,850 Height, in mm: 1,715
Carton size range (mm): A min. 20, max. 150B min. 15, max. 85 C min. 60, max. 210
Case size range (mm) a3 min. 180, max. 500b3 min. 120, max. 350 c3 min. 120, max. 350
