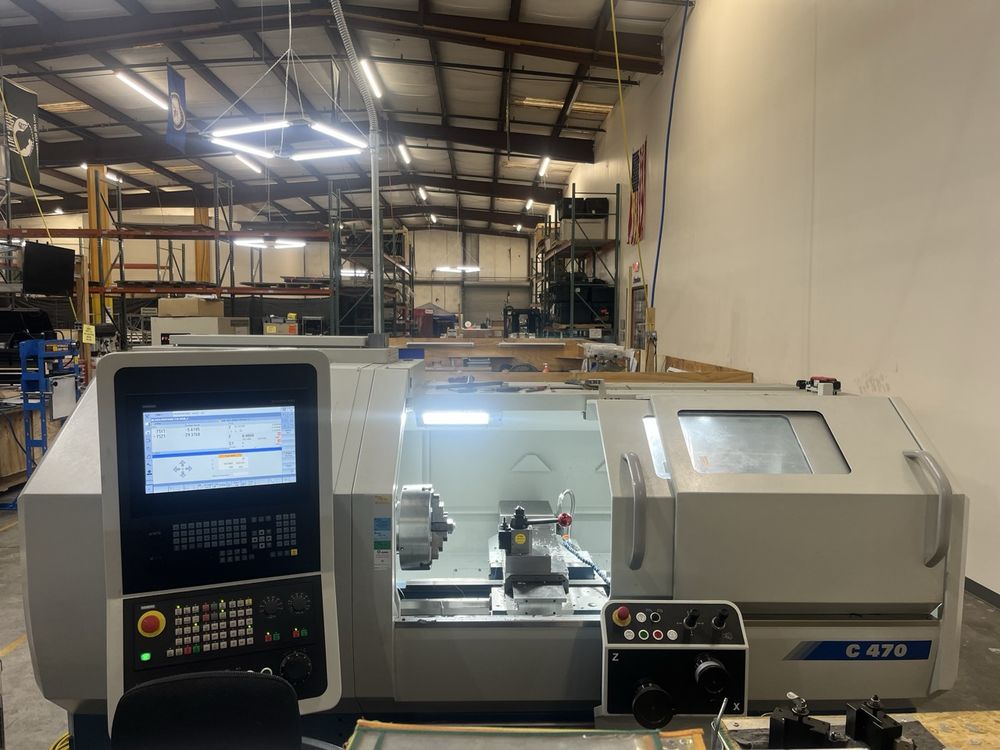

Romi Siemens Sinumerik 828D 3,000 rpm C-470 2024 2 Axis

Cross Slide (X-axis) Travel: 8.66″
Longitudinal (Z-axis) Travel: 41.93″
Rapid Traverse (X and Z axes): 394″/min
Swing Over Bed: 18.50″
Swing Over Cross Slide: 7.87″
Distance Between Centers: 39.37″
Center Height: 9.45″
Spindle Nose: A2-6
Spindle Bore (Through Hole): 2.56″
Maximum Spindle Speed: 3,000 rpm
Main Motor Power (S6, 40%): 12.5 hp
Turret: 8-station electric turret, 1″ × 1″ tool capacity
Tailstock: Manual (standard), optional hydraulic quill
Tailstock Quill Stroke: 4.72″
Tailstock Quill Diameter: 2.36″
Tailstock Taper: Morse Taper #4
Machine Footprint (L × W): 114.6″ × 48.8″
Machine Weight: 5,732 lb
Control: Siemens Sinumerik 828D
(10) OD Holders
(7) ID Holders with 1″ Bore
Tailstock
