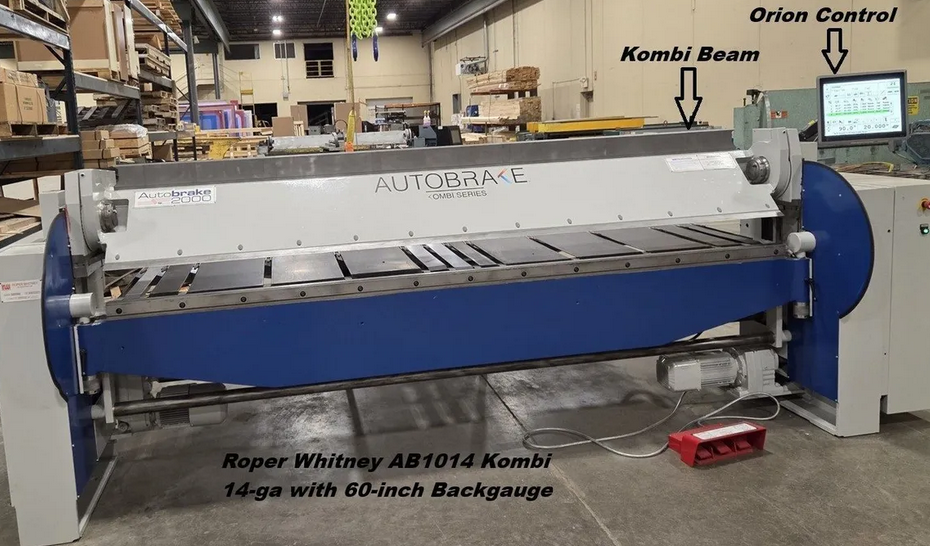

Roper Whitney AB1014K Back Gauge Depth 60 in / 1015 mm

Bending Capacity Mild Steel 14 gauge / 2.0 mm
Bending Capacity Stainless 16 gauge / 1.5 mm
Bending Length 122 in / 3100 mm
Clamping Beam Opening Height 7.3 in / 185 mm
Clamping Beam Straight Bar Tooling 30 Degrees
Folding Beam Adjustment 2 in / 50 mm
Crowning Folding Beam 3-Point 0”–0.030” Adjustment
Working Height 34 in / 864 mm
Machine Length 180 in / 4572 mm
Machine Width 96 in / 203 mm
Machine Height 84 in / 2134 mm
Machine Weight 9,132 lbs
Shipping Weight 9,612 lbs
Back Gauge Servo Motor ¾ HP
Clamping Beam Motor 2 HP
Bending Beam Motor 2 HP
Clamping Beam Speed 2.5 in/sec
Folding Beam Speed 70 deg/sec
Back Gauge Speed 0.375 in to 61 in in 2.5 sec
Electrical 230 V 3 Phase 60 Hz
Maximum Current Draw 7 A
Service Required 15 A
Incoming Power Wire Gauge 14 gauge
