Roper Whitney AB1016E2 Bending Capacity (Mild Steel) 16ga / 1,6mm

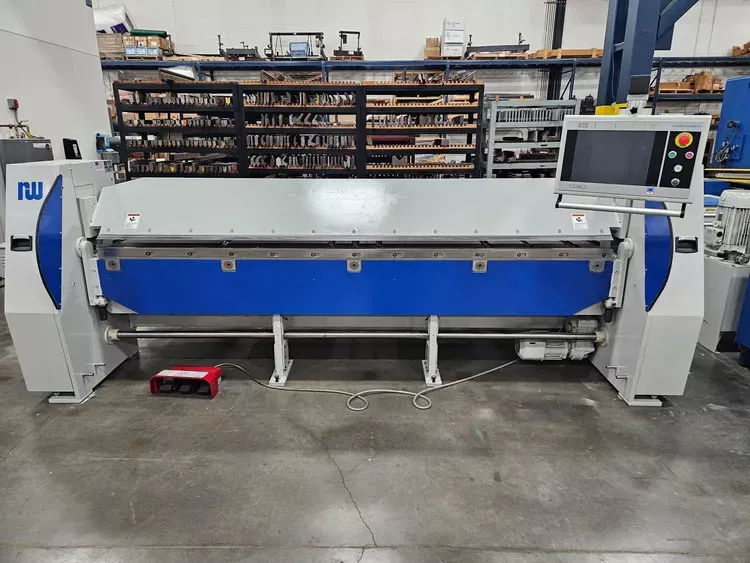

ROPER WHITNEY AB1016E2
Year: 2015


AUTOBRAKE AB1016 SPECIFICATIONS
Bending Capacity (Mild Steel) 16ga / 1,6mm
Bending Capacity (Stainless) 18ga / 1,2mm up to 90°, 20ga / 1,0mm past 90°
Bending Length 122 in / 3100mm
Bending Bars .787" (20mm) bending bar x 122" (3100mm)
.394" (10mm) bending bar x 122" (3100mm)
.275” (7mm) bending bar x 122" (3100mm)

Crowning of the Folding Beam 5-Point 0”-0.030” Adjustment
Folding Beam Adjustment 2 in / 50mm
Clamping Beam Opening Height 4.5 in / 114mm
Clamping Beam Tooling Straight Rail 20 Degrees

Back gauge Depth (Standard) 40 in / 1000 mm

Working Height 34 in / 864mm

Back Gauge Motor 3/4 hp Servo / 0.6 kw Servo
Clamping Beam Motor 1.5 hp / 1.1 kw
Bending Beam Motor 1.5 hp / 1.1 kw

Machine Weight 5,850 lbs. / 2659 kg
Shipping Weight 6,330 lbs. / 2877 kg
Machine Dimensions 153 x 67 x 70 in / 3886 x 1702 x 1778 mm

Speed AB1016
Clamping Beam Speed 2.5” per second
Folding Beam Speed 70 degrees per second
Back gauge Speed (0.250” to 40”) 2 seconds
