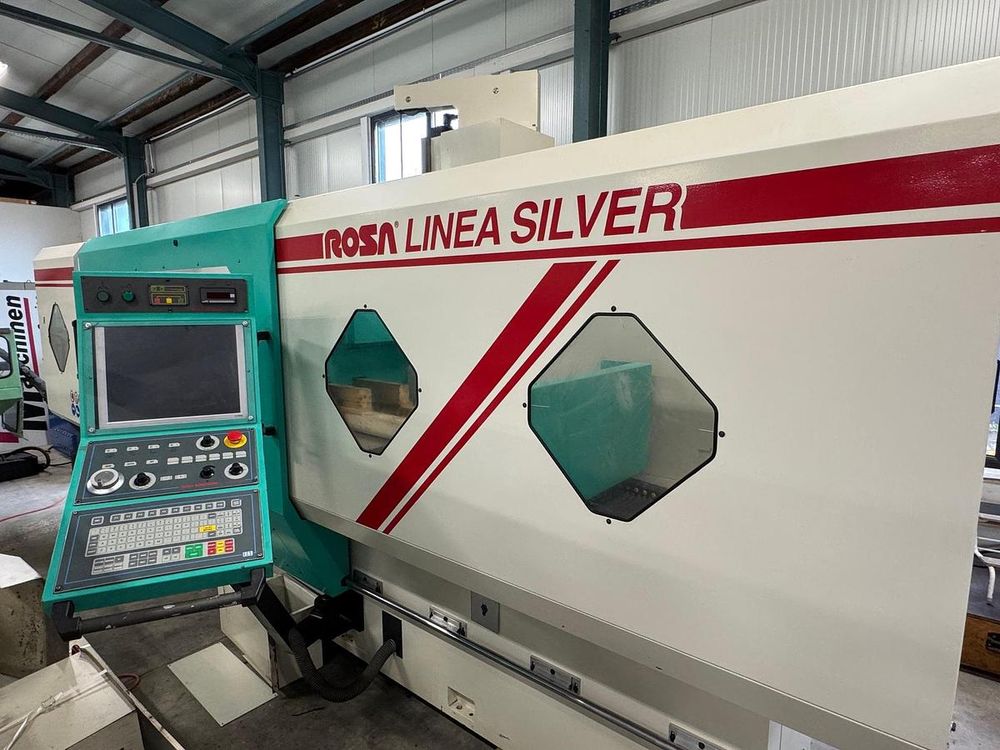

Rosa ROSA LINEA SILVER 16.8 CNC

Longitudinal travel distance: 2000 mm
Grinding length: 1850 mm
Table top: 1700 mm
Cross travel: 750 mm
Cross-cut length: 830 mm
Grinding height vertical: 700 mm
Longitudinal speed: up to 39 m/min
Cross speed: adjustable up to 4 m/min
Lateral movement jagged: max. 40 mm
Control: ROSA CNC
Spindle speed of grinding spindle: 1450 rpm
Grinding wheel size: Ø 450 × 80 × 203 mm
Motor power of grinding wheel: 14.7 kW
Power hydraulic unit: 9.4 kW
Permissible table load: 2700 kg
Electronic magnetic clamping plate: 1700 × 550 mm
Noise level: 76 dB(A)
Machine weight: 11200 kg

Features
Large electronic magnetic clamping plate
CNC-controlled motion axes
Very high load capacity of the table
Stable heavy-duty industrial design
