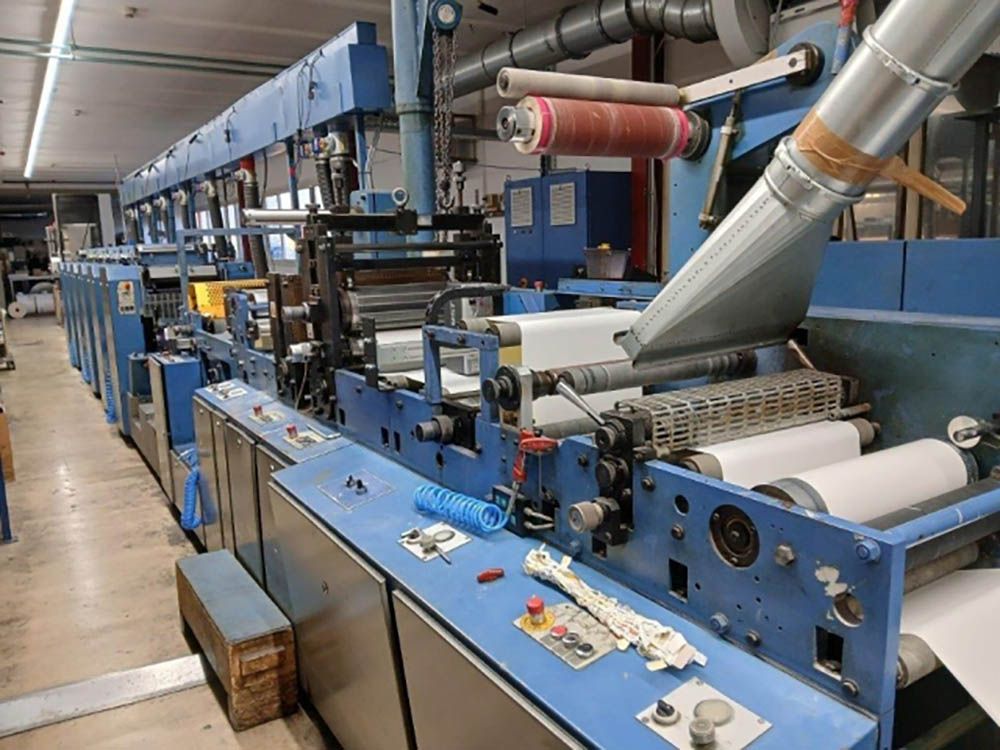

Rotatek COMBI FX 450 7 430 mm

Process: UV Offset (6 units) + Flexo (1 unit) — total 7 printing units
Upgrades (2021): Dr. Hönle UV system (8 lamps), ink mist extraction
Techno Trans dampening solution unit, video web inspection camera
Condition: Good overall / testable

• Max. web width: 450 mm
• Max. print width: 430 mm
• Repeat/Format cassettes included: 13", 18", 20", 24"
• Blankets: 0.95 mm self adhesive
• Material thickness range: 40–300 µm
• Mechanical speed: up to 150 m/min Unwind / Rewind & Web Handling
• Unwind: standard, 76 mm (3") air shaft
• Web guiding / edge guide• Web cleaning (finishing/web cleaner)
• Rewind: with 76 mm (3") shaft Printing & Converting Modules
• 6 × UV Offset printing units with ink mist extraction
• 1 × Flexo printing unit
• Lamination station
• Cold foil station
• Rotary die cutting with matrix stripping and matrix rewind
• Video inspection camera system (2021) UV & Auxiliaries
• UV system: Dr. Hönle, 8 lamps (installed 2021)
• Dampening system: Techno Trans (2021)
• Ink mist extraction: upgraded 2021 Footprint / Space (reference at current site)
• Approx. installed footprint: 18 m × 5 m Included Tooling & Accessories
• Plate bender and plate punch
• For each format set: six (6) offset cassettes
• Flexo plate cylinder: one (1)
• Magnetic cylinder: one (1)
• Selection of rotary dies (details on request) Optional (at extra cost)
• ABG Vectra Non Stop turret rewinder (small rolls) — available on request.
Note: Power/air requirements, original manuals and the exact list of rotary dies are available on request.
