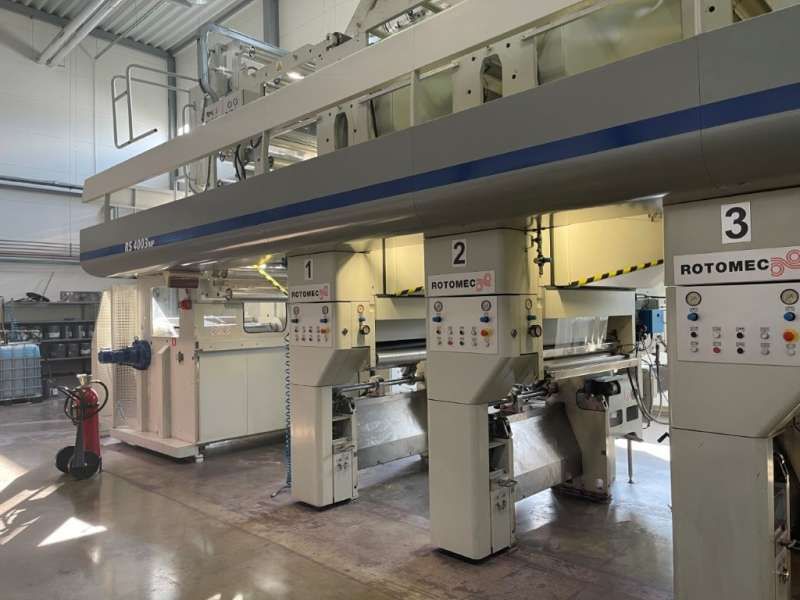

Rotomec RS4003 1025 mm

Rotogravure printing press
Type of inks : Solventbased
Number of colours : 12
Last 4 units reversible in register
Unit 12 is a hotmelt unit
Unit 11 can perform in register cold seal to opposite to print
Max. web width: 1050 mm
Max. printing width: 1025 mm
Min. - Max. printing repeat: 450 - 920 mm
Max. mechanical speed : 350 m/min
Materials :
BOPP 15 – 60 µm
PET 10 – 60 µm
BOPA 15 – 60 µm
Paper/Laminates 20 – 150 gsm
Unwind type: Automatic turret
Unwind shafted/shaftless: Shafted
Max. unwind reel diameter: 1020 mm
Rewind type: Automatic turret
Rewind shafted/shaftless: Shafted
Max. rewind reel diameter: 1020 mm
Drying type : Thermic oil
Drying source included : No
Extended drying : Yes, colours 9-11
Web guide(s) : Yes
Video camera : Yes
Corona treater : Yes
Viscosity control: Yes
Turningcross : Yes, after unit 8
Number of cylinders/sleeves : Approx 1400
Other information : Automatic color register, Bobst Registron S5100-E4
